• Application：Solid material, Strong dust, easy to crystallize, condensation occasion
• Measuring Range：80 meters
• Process Connection：Thread, Universal Flange
• Process Temperature：-40℃~130℃(Standard type)；-40℃~250℃(High temperature type)
• Process Pressure：-0.1 ~ 0.3 MPa
• Measurement Accuracy： ±15mm
• Protection Grade：IP67
• Frequency Range： 26GHz

• Features
• Specifications
• Working principle
• Applications

Features of SIRD-904 Radar Level Gauge with Parabolic Antenna

Radar Level Gauge with Parabolic Antenna can produce narrow beam width and directivity. When there are many interferences in the tank wall, it can be measured well. It is not affected by false echoes of interferences such as steps.

The parabolic antenna is suitable for liquid and solid applications. Because of the largest diameter, the radar beam is the narrowest and can be used for extremely long measurement distances. The parabola is also the most insensitive antenna type to pollution.

It can be used in applications where antenna condensation is severe, such as asphalt and liquid sulfur.

SIRD-904 Radar Level Gauge with Parabolic Antenna uses a transmission frequency of up to 26GHz. It has:

• The beam angle is small (minimum 5 degrees). The energy is concentrated. It has stronger anti-interference ability. It greatly improves the measurement accuracy and reliability;
• The antenna size is small. It is easy to install and add dust cover and other antenna protection devices;
• The measurement blind area is smaller. Good results can also be obtained for small tank measurement;
• The wavelength is shorter. It is more suitable for the level measurement of small particles.
• It adopts advanced microprocessor and unique EchoDiscovery echo processing technology.
• It adopts pulse working mode. Radar level gauge has very low transmitting power. It can be installed in various metal and non-metal containers, and it has no harm to human body and the environment.

Specifications of SIRD-904 Radar Level Gauge

Application：	Solid materials, strong dust, easy to crystallize, and condensation
Measuring Range：	80 meters
Process Connection：	Thread, universal flange
Process  Temperature：	-40～130℃(standard type) / -40～250℃(high temperature type)
Process Pressure：	-0.1～0.3MPa
Accuracy：	±15mm
Protection Grade：	IP67
Frequency Range：	26GHz
Supply：	Two-wire system (DC24V) / Four-wire system (DC24V/AC220V)
Signal Output：	Exia ⅡC T6 Ga / Exd IIC T6 Gb
Outer Covering：	Aluminum Single Chamber / Aluminum Dual Chamber / Plastic / Stainless Steel Single Chamber
Explosion-proof Grade：	4…20mA/HART (two-wire/four-wire) / RS485 Mod bus
Antenna Material	stainless steel

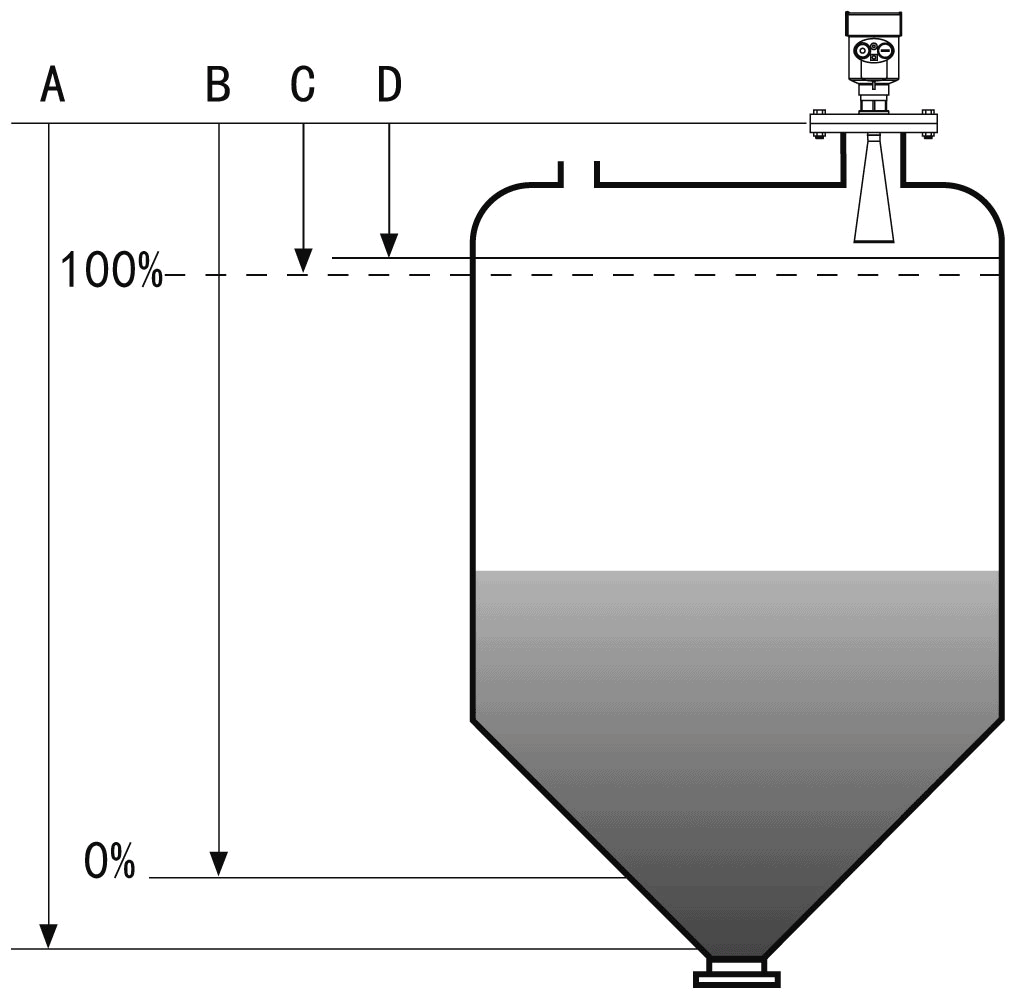

Radar level gauge working principle

Radar level gauge antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives. Sends the signal to the electronic circuit automatically converted into level signals. Because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost instantaneous.

Datum measurement:  Screw thread bottom or the sealing surface of the flange.

Note: Make sure the radar level meter the highest level cannot enter the measuring blind area (Figure D shown below).

• A    Range set
• B    Low adjustment
• C    High
• D    Blind area

Radar Level Gauge Applications

Radar liquid level can be divided according to the antenna form and can be divided into cone antenna, parabolic antenna, rod antenna.

The cone antenna is suitable for installation on the top of the tank or on the still pipe. Suitable for applications with a large measuring range.

The parabolic antenna is suitable for both liquid and solid measurement applications. Because it has the largest diameter, it has the narrowest radar beam.

The parabolic antenna is also the antenna type that is least sensitive to pollution. Which can be used for extremely long-distance measurement. It can be used in applications with harsh antenna bonding fluids such as asphalt and liquid sulfur.

The rod antenna is small in size, and only the PTFE material is exposed to the atmosphere of the storage tank. Rod antennas are suitable for measurement applications with sanitary requirements or corrosive chemical materials.

For the measurement-level high-precision radar level gauge, the frequency modulated continuous wave type is adopted. Except for fuel oil, asphalt, and other storage tanks with high viscosity and easy condensation. Which use parabolic antennas, other storage tanks use cone antennas.

The inner floating roof tank is designed with a waveguide to achieving accurate measurement of the liquid level of the storage tank. And set up a local indicator on the ground to display the liquid level value. It is convenient for on-site operators to inspect.

Extended reading: Radar Level Meter for Corrosive Liquids

Radar tank level gauge

Radar Tank Gauging System

Liquid level measurement system based on fieldbus of radar level gauge.

The radar level gauge provides 4-20mA output signal superimposed with HART, and also provides a digital field bus transmission method.

In the tank area measurement system, the tank area measurement signal is transmitted to the control system through the field bus of the radar level gauge.

The field bus can transmit multiple process parameters at the same time, which greatly simplifies the connection line and reduces the cost.

And at the same time of the transmission process, the identifier of the instrument and simple diagnostic information can also be transmitted together.

The field bus is bidirectional, so it is possible to calibrate, adjust and operate the field intelligent instrument in the control room. It can even predict the failure before it occurs.

Using the characteristics of data transmission based on the fieldbus of the radar level gauge, a level measurement system is constructed for the tank farm.

A radar level gauge is used for level measurement.
It communicates with the radar communication unit installed in the control room through the field bus.

Then the radar communication unit communicates with the control system through the RS-485 bus. While transmitting the liquid level of each storage tank, the temperature, pressure, density and other detection signals are accurately transmitted to the control system through the radar level gauge for concentration. Monitoring.

Realize the measurement of the entire tank area.

The fieldbus transmission mode of radar level gauge has the following advantages in project implementation:

1. The use of fieldbus network. It solves the problem of centralized detection of distributed oil storage tanks. It is convenient for networked management. It makes the system more practical, stable and reliable.
2. Digital transmission method. It can transmit multiple process variables at the same time. It greatly simplifies the signal connection line. It saves a lot of cables, protective sleeves, trough boxes, bridges and threading boxes and other corresponding auxiliary materials. It greatly reduces the cost .
3. The wiring is simple. If you need to add field instruments, you only need to connect to the original network in parallel. There is no need to lay it in the cabinet room. It saves cables and reduces investment. It also reduces the workload of design and installation.
4. Project implementation is more convenient. The project period is short. The workload is greatly reduced. The maintenance and installation costs are reduced.

Radar Level Gauge can also be used with paperless recorder.

What is radar level measurement?

Radar level measurement refers to the operation method of using radar as the core technology to measure the liquid level value.

Radar level measurement is a radar level gauge based on the principle of time domain reflection (TDR).
The electromagnetic pulse of the radar level gauge propagates along the steel cable or probe at the speed of light.

When encountering the surface of the measured medium. Part of the pulse of the radar level gauge is reflected to form an echo and returns to the pulse transmitter along the same path.

The distance between the transmitting device and the surface of the measured medium is proportional to the propagation time of the pulse between them. The height of the liquid level is calculated.

Extended reading: guided wave radar level sensor advantages and disadvantages

Radar level gauge price

Regarding the price of radar level gauge. Everyone must first know that the price of radar level gauges is generally high. At least under the same measurement parameters. Radar level gauges are more expensive than ultrasonic level transmitters.

However, the price of the radar level gauge is also telling the user its value. After all, you get what you pay for.

Of course. As a manufacturer of radar level gauges. Sino-Inst is committed to providing you with the best price radar level gauge.

Here, we provide you with a price list of radar level gauges. for reference only.

If you need to purchase radar level gauges, please contact our sales engineers to confirm the price.

Radar level gauge price list
Model	Unit price (USD/pc)	Medium
Radar level gauge	1038	Liquid, gas
Radar level gauge	1292	Liquid, solid
Radar level gauge	1292	Liquid, solid
Guided wave radar level gauge	923	Liquid, gas
High frequency radar level meter	1385	Liquid, solid
Guided wave radar level gauge	831	Liquid, solid
Anticorrosion radar level gauge	1038	Liquid, gas
Rod radar level gauge	923	Liquid, solid
Rod guided wave radar level gauge	831	Liquid, solid
Cable guided wave radar level gauge	831	Liquid, solid

Extended Reading: Influence of Dielectric Constant on Liquid Level Measurement | Radar-Guided Wave Radar Level Meter

What is the difference between ultrasonic and radar level transmitters?

Difference 1. The measuring range is different

Ultrasonic liquid level measurement range: 0-50 meters;

The radar level gauge can measure all media with a dielectric constant >1.2 in vacuum. The measuring range can reach 70 meters.

Difference 2: Different emission materials

The ultrasonic level gauge emits sound waves from the sensor (transducer). After being reflected by the liquid surface, it is received by the same sensor or ultrasonic receiver;

Very short microwave pulses with very low energy emitted by the radar level gauge are transmitted and received through the antenna system. Radar waves travel at the speed of light.

Parabolic antenna

The parabolic antenna is suitable for both liquid and solid applications. As it has the largest diameter it has the most narrow radar beam and can be used for extremely long measuring distances. The parabolic is also the antenna type most insensitive to contamination. It can be used in applications with severe antenna condensation like asphalt and liquid sulphur.

The Rosemount 5900S antennas have a drip-off design which for some versions also include inclined polished PTFE surfaces. Condensation on the antenna is minimized, and the radar signal remains strong. This results in maintenance free operation, high accuracy and reliability.

There is always a suitable antenna for every tank type, tank opening and application:

• Parabolic
• Horn
• Still-pipe array
• LPG/LNG

Information Sources: https://www.emerson.com/documents/automation/product-data-sheet-rosemount-5900s-radar-level-gauge-en-104522.pdf

SIRD-904 Radar Level Gauge with Parabolic Antenna is a cheap alternative to Rosemount 5900S. If you have any technical questions, please contact our sales engineers.

Radar Antenna Types, please refer to:

FAQ

Request a Quote

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

Level sensor for solids is suitable for measuring the level of Dry Material (Bulk Solids and Powders). There are many kinds of meters that can automatically and continuously detect the material level. Such as electrode type, ultrasonic type, heavy hammer type, and so on. The radar level sensor stands out because of its high-precision performance. Radar level sensors can perform reliable level measurements of dust-containing particles, granules, powder, or aggregates in silos, silos, crushers, stockpiles, or transfer station applications. It is suitable for occasions with large changes in dust, temperature and pressure, and the presence of inert gas and steam.

Get a Quote

• Features
• Specifications
• Applications

Features of SIRD-903 Radar level Sensor for solid

• Non-contact measurement. No wear, no pollution
• Small antenna size, easy to install
• The wavelength is shorter. It has a better reflection on the inclined solid surface
• The measurement blind zone is smaller. Good results can also be obtained for small tank measurement
• The beam angle is small and the energy is concentrated. While enhancing the echo ability, it also helps avoid interference
• Almost unaffected by water vapor in the atmosphere, temperature, and pressure changes
• The instrument can also accurately read the true level echo in a severe dust environment
• High signal-to-noise ratio. Better performance can be obtained even under fluctuating conditions
• 26GHz frequency. It is the best choice for measuring solid and low dielectric constant media

Specifications of SIRD-903 26 GHz Radar level Sensor

Application：	Solid materials, strong dust, easy to crystallize, and condensation
Measuring Range：	70 meters
Process Connection：	Universal flange
Process  Temperature：	-40～130℃(standard type) / -40～250℃(high temperature type)
Process Pressure：	-0.1～4.0 MPa (flat flange) -0.1～0.3 MPa (universal flange)
Accuracy：	±15mm
Protection Grade：	IP67
Frequency Range：	26GHz
Supply：	Two-wire system (DC24V) / Four-wire system (DC24V/AC220V)
Signal Output：	Exia ⅡC T6 Ga / Exd IIC T6 Gb
Outer Covering：	Aluminum Single Chamber / Aluminum Dual Chamber / Plastic / Stainless Steel Single Chamber
Explosion-proof Grade：	4…20mA/HART (two-wire/four-wire) / RS485 Mod bus
Antenna Material	Stainless steel

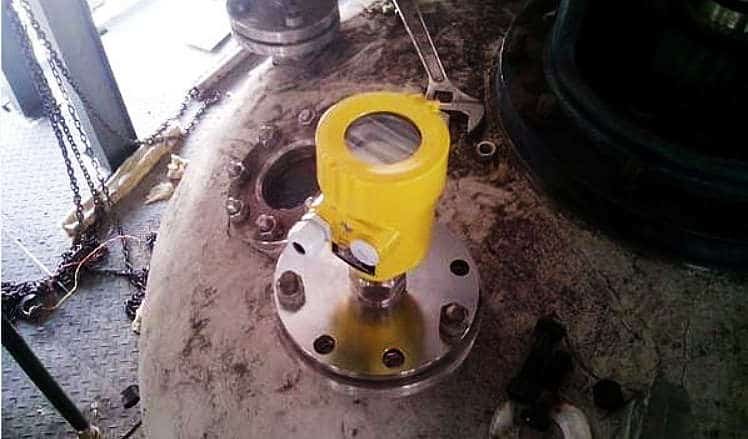

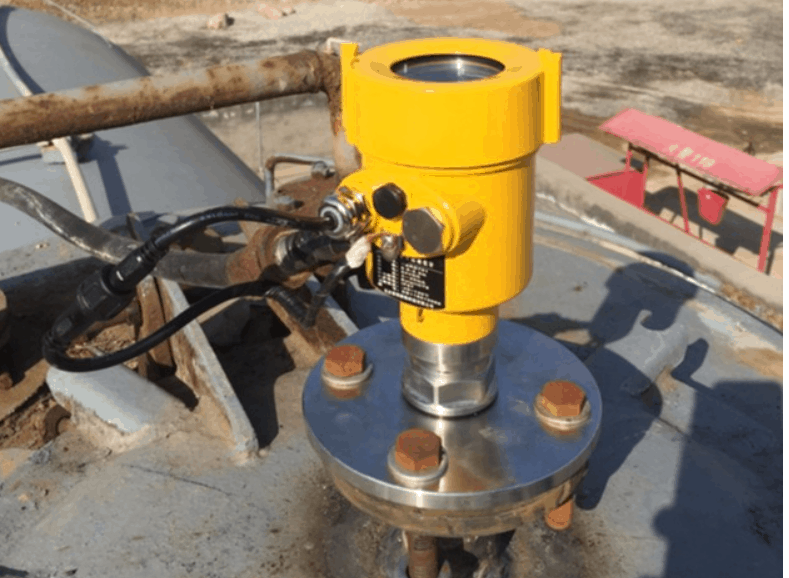

Applications of Radar level Sensor for solids – Dust solid level measurement

Radar level sensors for solids can measure the maximum distance up to 70 meters. Compared with ordinary measuring instruments, the antenna of the Radar level sensor is further optimized and processed with a new type of fast microprocessor. Signal analysis and processing at a higher rate can be performed. The application range of Radar level sensors includes solid materials, process containers, or strong dust that are easy to crystallize and dew.

1. Granular materials

In cement plants, most of the raw materials are granular materials, and some are block materials. Such as limestone, raw coal, shale, etc., the semi-finished clinker is also a granular material. Stored in a warehouse or warehouse, there is an angle of repose of the material, but there is also a reflective interface.

According to the angle of repose and surface condition of the material formed by the feeding and unloading. After determining the effective range, it is recommended to use a non-contact Radar level sensor. That is a level gauge with a rod-shaped or horn-shaped antenna. The level gauge of the horn antenna has a stronger echo and higher accuracy (±0.2%～±1%F.S).

2. Powdery materials

There are generally 4 to 8 cement warehouses in cement plants or grinding stations. In addition, there are raw meal homogenization silo and fly ash silo, which is all powdered materials. Because the surface of the powder is extremely loose, microwave reflection is quite difficult. If the Radar level sensor is not used, it is very difficult to measure its level.

For powdery materials, a non-contact Radar level sensor with a horn antenna with a large flange can be used. It actually uses the cable as both an antenna and a still pipe, combining the two into one.

After the microwave pulse is emitted from the probe, it propagates along the cable. When the pulse meets the surface of the material, it will be reflected back, and its range can reach 35m. The dielectric constant ε of the tested material is at least 1.6. In addition, the cable’s wear resistance and the maximum endurable pull-down force. It can meet the testing requirements of various powder storages in cement plants.

At present, many cement plants have used the cable Radar level sensor to measure the material level of the homogenization silo, cement silo, and fly ash silo. Both have achieved good results.

Extended Reading: FMCW Radar for High Temperature Level Sensor

Solid level measurement techniques

Solid level measurement is a challenge for everyone. Because the bulk solids detected in the silo or storage tank are irregular physical forms.

Solid level measurement is a very difficult task. But knowing the amount of bulk solids in a silo, storage tank, or other container is an important variable in any process. Manufacturers can maximize efficiency, prevent overflow, exhaustion, or track volume or quality.

The use and selection of the Solid level measurement instrument are more complicated. Because the tested medium is an irregular physical form. SIRD-903 26 GHz Radar level Sensor is suitable for Dust solid level measurement. It is used in solid materials, strong dust, easy to crystallize, and condensation. Such as calcium carbonate powder level measurement.

Extended reading: ​Solid flow meter | For bulk solids-powder-soybean-cement

Common level sensors for solids

The analysis of common level sensor for solids is as follows:

Extended reading: Radar Level Meter for Corrosive Liquids

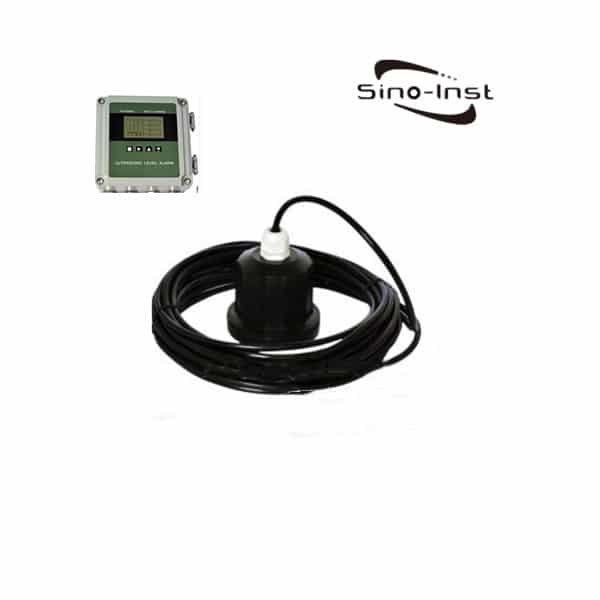

Ultrasonic level sensor for solids

The ultrasonic pulse emitted by the ultrasonic transducer is transmitted to the surface of the object to be measured through the propagation of coal qualification. After reflection, it returns to the receiving transducer through the sound transmission medium.

Measure the time that the ultrasonic pulse propagates in the sound transmission medium from the transmission to the reception. Then according to the speed of sound in the sound transmission medium, the distance from the transducer to the object surface can be calculated. To determine the level.

Capacitive Level Sensor For Solid Level Measurement

Capacitance level detectors are also known as Capacitance level transmitters, are also referred to as radio frequency (RF) or admittance level sensors. They operate in the low MHz radiofrequency range, measuring admittance of an alternating current (ac) circuit that varies with level. Capacitance level sensors are a proven, as well as a cost-effective solution for level measurement, and point level detection in liquids and bulk solids. Various transmitters for continuous level measurement and switches, for point level detection are available. The measurement of the interface is also possible. The measuring principle is proven in millions of applications.

Extended reading: GWR Solid Level Sensor-Cement silo-Ash powder measure

Featured level sensors for solids and liquids

FAQ

Extended reading: guided wave radar level sensor advantages and disadvantages

Sino-Inst offers over 10 Radar level sensor for solids level measurement. About 50% of these are Radar level meters, 40% is the tank level sensor.

A wide variety of level sensor for solids level measurement options are available to you, such as free samples, paid samples.

Sino-Inst is a globally recognized supplier and manufacturer of radar level measurement instrumentation, located in China.

Request a Quote

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

Radar Liquid Level Sensor is an instrument that measures the height of a liquid and converts it into an electrical signal. Using time-domain reflectometry (TDR) sensing technology, Radar Liquid Level Sensor emits and receives high-frequency radio waves (microwaves) to measure the distance to the surface of liquid-based substances. Different from the ultrasonic and guided wave radar transmitter. SIRD-902T Microwave Radar Liquid Level Sensor is a self-heating microwave level sensor. Low-temperature resistance, heat tracing type, non-icing, and anti-crystallization. Suitable for corrosive liquids, steam, and volatile liquids.

Get a Quote More Radar Level Sensors

• Features
• Specifications
• Application

Features of SIRD-902T Microwave Radar Liquid Level Sensor

• The level sensor can be heated. It is resistant to low temperature, self-heating, does not freeze, and prevents crystallization.
• Almost unaffected by corrosion and foam. Almost unaffected by atmospheric water vapor, temperature, and pressure changes.
• The severe dust environment has little effect on the work of the high-frequency level meter.
• The wavelength is shorter. It has a better reflection on the inclined solid surface.
• The beam angle is small, the energy is concentrated, and the echo ability is enhanced, but it is also beneficial to avoid interference.
• The measurement blind zone is smaller. Good results can also be obtained for small tank measurements.
• High signal-to-noise ratio. Better performance can be obtained even under fluctuating conditions.
• High frequency. It is a better choice for measuring solid and low dielectric constant medium.

Specifications of SIRD-902T Microwave Radar Liquid Level Sensor

Application：	Temperature, pressure, slightly corrosive liquid
Measuring Range：	20 meters
Process Connection：	Thread, flange
Process  Temperature：	-40～130℃(standard type) / -40～250℃(high temperature type)
Process Pressure：	-0.1～2.0MPa
Accuracy：	±3mm
Protection Grade：	IP67
Frequency Range：	26GHz
Supply：	Two-wire system (DC24V) / Four-wire system (DC24V/AC220V)
Signal Output：	Exia ⅡC T6 Ga / Exd IIC T6 Gb
Outer Covering：	Aluminum Single Chamber / Aluminum Dual Chamber / Plastic / Stainless Steel Single Chamber
Explosion-proof Grade：	4…20mA/HART (two-wire/four-wire) / RS485 Mod bus
Antenna Material	Stainless Steel  /  PTFE

Radar Level Sensor Application

The measurable conditions of the 902T Radar Liquid Level Sensor are as follows:

• Application: corrosive liquid, steam, volatile liquid
• Measuring range: 20 meters
• Process connection: flange
• Medium temperature: -40～130℃ (standard type)/ -40～230℃ (high temperature type)
• Process pressure: -0.1～2.0MPa

Read more about List of Radar Level Sensors

Radar Liquid Level Sensor Working Principle

The radar-level antenna emits narrow microwave pulses. Downward transmission via the antenna. After the microwave touches the surface of the measured medium, it is reflected back. It is received by the antenna system again and transmitted to the electronic circuit part to automatically convert it into a level signal.

Because microwaves travel so fast, the time it takes for electromagnetic waves to reach the target and return to the receiver by reflection is almost instantaneous.

A range setting
B Low adjustment
C high adjustment
D Blind zone range

The reference plane of the measurement is:
The bottom surface of the thread or the sealing surface of the flange

Note: When using radar level timing, make sure that the highest material level cannot enter the blind area of the measurement (the area shown in D in the figure).

Know more about Level measurement using radar technology

Radar Level Sensor Advantages and Disadvantages

Advantages of radar level measurement

• Measurement is not affected by temperature, pressure, or dust
• User-friendly adjustment saves time
• Non-contact, continuous level measurement over larger ranges
• Unaffected by sludge and biomass, dust, foam, oil, grease and other coatings, uneven surfaces, turbulence, pressure, and vacuum
• Single-frequency radar level sensors for liquid sensing, dual-frequency radar level sensors for level measurement of aggregates, gravel, sand, coal, asphalt, and other solids
• Simple mounting and push-button calibration

Disadvantages of radar level measurement

• Very sensitive to build-up on the sensor surface.
• They are very expensive. Price increases with accuracy.
• Foaming, splashing, vapor, and humidity can affect measurement performance.
• Top mounting only
• Minimal blocking distance limits operation when in proximity to liquid level
• Longer blocking distance than ultrasonic
• Radar passes through low dielectric constant fluids

Radar Level Sensor for Solids

Measuring medium: liquid and Solids
Measuring range: 0.1m~120m
Process connection: flange≥DN80
Process temperature: -40～200℃; -60~1200℃
Process pressure: -0.1～2.5MPa
Antenna size: 78mm lens antenna
Antenna material: PTFE/full filling

Measuring medium: solid
Measuring range: 0.3m~150m
Process connection: flange≥DN80
Process temperature: -40～110℃
Process pressure: -0.1～0.3MPa
Antenna size: 78mm lens antenna + purging (or without purging)
Antenna material: PTFE

Application: solid materials, strong dust, easy to crystallize, condensation occasions
Measuring range: 70 meters
Process connection: universal flange
Process temperature: -40～130℃ (standard type) / -40～250℃ (high temperature type)
Process pressure: -0.1～4.0 MPa (flat flange) -0.1～0.3 MPa (universal flange)
Accuracy: ±15mm
Protection level: IP67

Application: solid materials, strong dust, easy to crystallize, condensation occasions
Measuring range: 80 meters
Process connection: threaded, universal flange
Process temperature: -40～130℃ (standard type) / -40～250℃ (high temperature type)
Process pressure: -0.1～0.3MPa
Accuracy: ±15mm
Protection level: IP67

Application: solid particles, powder
Measuring range: liquid 35 meters / solid block 20 meters / solid powder 15 meters
Process connection: thread, flange
Process temperature: -40～130℃ (standard type) / -40～250℃ (high temperature type)
Process pressure: -0.1～4.0 MPa (flat flange) -0.1～0.3 MPa (universal flange)
Accuracy: ±15mm
Protection level: IP67

Applicable medium: solid particles or blocks, not suitable for solid powder
Application: Lime block measurement; raw coal measurement
Explosion-proof certification: Exia IIC T6 Ga/ Exd IIC T6 Gb
Measuring range: 35m
Antenna: Horn antenna
Frequency: 6 GHz
Process temperature: -40～130℃(standard type)/-40～250℃(high-temperature type)

Applicable medium: solid, especially medium measurement in a high-temperature environment
Application: Blast furnace level measurement
Explosion-proof certification: Exia IIC T6 Ga/Exd IIC T6 Gb
Measuring range: 15m
Antenna: Horn antenna
Frequency: 6 GHz
Process temperature: (-40～400)℃

Ultrasonic vs Radar Level Sensor

What is the difference between Ultrasonic Level Sensor and Radar Level Sensor?

Ultrasonic Level Sensor and Radar Level Sensor are non-contact liquid level measuring instruments. As the name suggests, one uses ultrasonic waves and the other uses electromagnetic waves. In addition, what are the differences between ultrasonic level sensors and radar level sensors?

Simply put:

1. The relative price of Radar Level Sensor is relatively high;
2. Radar Level Sensor has higher accuracy than ultrasonic;
3. The measuring range of radar is larger than that of ultrasonic;
4. When using Radar Level Sensor, consider the dielectric constant of the medium.
5. Radar Level Sensor has horn type, rod type and cable type. Compared with ultrasonic, it can be applied to more complicated working conditions;
6. Ultrasonic cannot be applied to working conditions such as vacuum, high steam content or foam on the liquid surface.

Extended Reading: FMCW Radar for High Temperature Level Sensor

Ultrasonic Liquid Level Sensor

Ultrasonic liquid level sensors are non contact level measurement devices. In the measurement, the ultrasonic pulse is sent by the sensor (transducer). The sound wave is reflected by the liquid surface and received by the same sensor or ultrasonic receiver. It is converted into an electrical signal by a piezoelectric crystal or a magnetostrictive device. It is transmitted and received by the sound wave. The time between the sensor and the surface of the liquid being measured. Due to non-contact measurement, the measured medium is almost unlimited. It can be widely used for measuring the height of various liquid and solid materials. Like: water level, fuel level, oil level, petrol tank level, and so on.

Extended reading: GWR Solid Level Sensor-Cement silo-Ash powder measure

Guided Wave Radar Level Transmitter

Guided wave radar level transmitter uses guided wave radar (GWR) technology. Based on the reflection of microwave on the surface medium. Through the probe, continuous level measurement of liquid and solid levels is completed.

A guided wave radar level transmitter is also called a wave-guided radar level sensor. They can measure both levels and the interface between two media. Through probe rod or cable, complete level contact types continuous level measurement. Such as Coaxial Probe Guided Wave Radar Level Transmitter. This is different from ultrasonic level measurement, which is a non-contact measurement. A guided wave radar level transmitter is often used for tank level measurement. Including liquid and solid. Output 4～20mA/HART, so as to measure and control the level during production.

Extended reading: GWR Solid Level Sensor-for Cement silo-Ash powder measure

Radar Level Sensor Price

The price of the radar level sensor is related to the medium, installation method, and pressure level.

1. The medium is divided into ordinary type and anti-corrosion type. The cost of the ordinary type is relatively low, and the price of the anti-corrosion type is relatively expensive.
2. The pressure levels are divided into 1.0MPA, 1.6MPA, 2.5MPA, 4.0MPA, 25MPA. The greater the pressure, the more expensive the price. So the pressure is directly proportional to the price.
3. Every customer who has bought a radar level sensor knows that the installation method is different. Top-mounted and side-mounted. Because of the different structure, the top-mounted type is more expensive than the side-mounted type.

Sino-Inst provides customers with the most reasonable prices on the basis of ensuring product quality. Radar Level Sensor Price reference range: USD500-1500.00/pc

Extended reading: ​Solid flow meter | For bulk solids-powder-soybean-cement

Featured Radar Water Level Sensors

Sino-Inst offers over 10 Microwave Radar Liquid Level Sensors for level measurement. About 50% of these are Radar level meters, 40% is the tank level sensor.

A wide variety of Microwave Radar Liquid Level Sensors options are available to you, such as free samples, paid samples.

Sino-Inst is a globally recognized supplier and manufacturer of radar level measurement instrumentation, located in China.

Request a Quote

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

The working frequency band of Radar Tank Level Sensor is 24G~26GHZ. Radar Tank Level Sensor is a non-contact radar transmitter based on the principle of FM continuous wave.

SIRD-902 Drop antenna Radar Tank Level Sensor is an integral PTFE drop antenna type radar level sensor. It is used to measure the distance and level of strongly corrosive liquids, pastes and solid media. Compared with the radar level sensor that adopts the pulse measurement principle, it can measure stably, reliably and with high precision even in dusty, foamy, and highly corrosive applications. Compared with pulse radar or GWR, there are many features they don’t have.

Radar Antenna Types

1. Horn antenna for radar level gauge:
   26G high-frequency radar-type level measuring instrument. Output 4-20mA analog signal. The maximum measuring distance can reach 70 meters. This antenna has been further optimized. The new and fast microprocessor can perform higher-speed signal analysis and processing. The instrument can be used for particularly complex measurement conditions in reactors or solid silos.
2. Rod antenna for radar level gauge:
   Suitable for measuring liquids. Corrosive media. The maximum measuring distance can reach 20 meters. The antenna is further optimized. The new and fast microprocessor can perform higher rate signal analysis and processing. The instrument can be used for very complex measurement conditions in the reactor or solid silo.
3. Parabolic antenna for radar level gauge:
   This is a new type of antenna launched in China. It is mostly used in high-frequency transmitting radars. It is especially suitable for measuring targets and avoiding obstacles. 26G high frequency radar type level measuring instrument. Output 4~20mA analog signal. The maximum measuring distance can reach 70 meters. The antenna is further optimized. The new and fast microprocessor can perform higher rate signal analysis and processing. The instrument can be used for very complex measurement conditions in the reactor or solid silo.
4. Radar level gauge casing antenna:
   The casing has a focusing effect on radar waves. Therefore, when the dielectric constant is small or the liquid level produces continuous eddy currents or the device in the container causes false reflections, this type of instrument is suitable. But the measured medium is required to have good fluidity. It is not easy to hang the material.
5. Lens radar liquid level antenna:
   Transmits narrow microwave pulses and transmits downward through the antenna. The maximum measuring distance can reach 70 meters. The antenna is further optimized. The new and fast microprocessor can carry out higher-speed signal analysis and processing. The instrument can be used for some complex measurement conditions such as reactors and solid silos.

The above content is for your reference only. When choosing the antenna of the radar level gauge, you should choose according to the actual needs of the measurement environment.

Extended reading: Magnetostrictive Hydraulic Cylinder Position Sensor

Radar Tank Level Sensor Working Principle

Frequency Modulated Continuous Wave Technology (FMCW)

The drop-type antenna emits radar waves, which are received by the antenna after being reflected on the surface of the medium. The radar principle used is Frequency Modulated Continuous Wave (FMCW). The frequency modulated continuous wave (FMCW) radar sends out a signal in the high-frequency band. Within its measurement range, the frequency of the radar wave increases linearly (called frequency sweep).

The transmission and reception of radar waves correspond to a time difference t. The distance d between the radar and the surface of the medium conforms to the formula t=2×d/c. Where c is the transmission speed of the radar wave above the surface of the medium, that is, the speed of light.

SIRD-902 Drop Antenna Radar Tank Level Sensor performs signal processing by comparing the frequency difference between the reflected wave and the current transmitted wave. The frequency difference △f is proportional to the distance, and the greater the frequency difference, the greater the distance.

After Fast Fourier Transform (FFT), the frequency difference Δf is converted into a frequency spectrum, and the distance d is calculated from this. The height of the level is calculated by the given tank height.

Extended reading: Radar Level Meter for Corrosive Liquids

Radar Level Sensor Advantages and Disadvantages

Advantages

• Measurement is not affected by temperature, pressure, or dust
• User-friendly adjustment saves time
• Non-contact, continuous level measurement over larger ranges
• Unaffected by sludge and biomass, dust, foam, oil, grease and other coatings, uneven surfaces, turbulence, pressure, and vacuum
• Single-frequency radar level sensors for liquid sensing, dual-frequency radar level sensors for level measurement of aggregates, gravel, sand, coal, asphalt, and other solids
• Simple mounting and push-button calibration

Disadvantages

• Very sensitive to build-up on the sensor surface.
• They are very expensive. Price increases with accuracy.

Extended Reading: Dielectric constant for radar level transmitter

Radar Level Transmitter Calibration

Because the general test distance of radar level gauges is mostly 2-10m or more than 10m. It is difficult to simulate the distance required for calibration in the laboratory. Therefore, radar level gauges mostly use online calibration.

The online calibration of the radar level gauge utilizes the on-site process conditions. Through the change of the liquid level, the output value of the radar level gauge is compared with the actual gauge measurement value or other forms of liquid level measurement value.

According to the “Measurement and Verification Regulations for Level Gauges”, the radar level gauge is calibrated at multiple points or single points. Then it is debugged through the debugging software to make it meet the measurement accuracy requirements.

The conventional online calibration method of the radar level gauge can ensure that it is carried out in accordance with the requirements of the regulations. At the same time, the online calibration will calibrate the process interference and installation error factors at the same time. Therefore, the actual measurement accuracy of the radar level gauge is higher than that of the laboratory calibration.
However, on-line routine calibration must use on-site process conditions. During the calibration period, on-site process equipment-storage tanks or reaction tanks must be shut down, which seriously affects on-site process production.

At the same time, the on-site liquid level change is affected by the process conditions, and the stabilization time is too long. Therefore, the online routine calibration time is usually longer. Gauge measurement or other forms of liquid level measurement are also restricted by on-site safety and technical influences.

Extended Reading: Guided-wave radar (GWR) level transmitter working principle

Radar Level Sensor for Solids

Radar Level Sensor is an advanced measuring instrument. It is suitable for solid materials, process containers or strong dusts that are easy to crystallize and dew. It has the advantages of low maintenance, high performance, high precision, high reliability and long service life. It can adapt to harsh production environments such as high temperature, high pressure, and steam.

For powdery materials, especially for the measurement of pneumatically conveyed powdery materials:

Although dust has no effect on radar in theory, a large amount of dust can also scatter and affect echo. Cable guided wave radar can be selected.

Because the microwave is transmitted in the steel cable, the dust generated during the transportation of the material has no effect on the measurement.

Cable guided wave radar can be used for the concentrate, quartz, and pulverized coal of the flash furnace, and the measurement effect is good.

For the measurement of granular or bulk materials:

The guided wave cable of the guided wave radar is easily damaged by hard materials. This problem is encountered in the level measurement of the limestone silo.

A high-frequency Radar Level Sensor must be selected. The smaller the emission angle of the microwave, the better. Because the higher the frequency of the microwave, the shorter the wavelength of the microwave. To ensure that the emitted radar wave can be reflected back to the radar to the greatest extent on the rough solid surface Probe. The smaller the emission angle, the smaller the probability of forming clutter and diffuse emission.

The high frequency Radar Level Sensor is adopted because of its small launch angle and good echo signal. Using continuous frequency modulation technology, the anti-interference ability is greatly improved. Solid and even pneumatically transmitted powders can also be accurately measured.

Extended Reading: GWR Level Sensor for High Temperature & High Pressure

Radar Level Transmitter vs Ultrasonic

Radar level meter: Very short microwave pulses with very low transmit energy are transmitted and received through the antenna system. Radar waves travel at the speed of light. The running time can be converted into a level signal by electronic components. A special time extension method can ensure stable and accurate measurement in a very short time.

Ultrasonic liquid level meter: The high-frequency pulse sound wave emitted by the ultrasonic transducer (probe) meets the surface of the measured level (material). The reflected echo is received by the transducer and converted into an electrical signal.

Read more about: Ultrasonic VS Radar level transmitter-different applications

From the above two principles, we can see the following two differences:

1. The radar level meter emits electromagnetic waves. The wave speed has nothing to do with ambient temperature, smoke, pressure, etc. It is the same even in a vacuum. The propagation speed is always the speed of light.
2. Ultrasonic liquid level meter emits ultrasonic waves, which belong to mechanical waves. Like sound waves, its propagation speed is closely related to the state of the propagation medium. Ultrasonic liquid level meter is used to measure the liquid level of atmospheric vessels. The probe contains temperature measuring elements to compensate the temperature of the wave speed. Because of the material, the temperature range used is relatively not very wide.

From the difference between the above 2 points of liquid level meter, the following 2 application conclusions can be summarized:

1. Ultrasonic is mostly used for meteor measurement, and radar is mostly used for liquid level measurement;
2. In terms of energy, the emitted wave of radar is larger than that of ultrasonic waves. Electromagnetic waves have a stronger transmission distance and speed than mechanical waves. However, electromagnetic waves are susceptible to electromagnetic interference. Mechanical waves are easily attenuated by gaseous substances.
   So its application is to detect the place where the ultrasonic gas must be opened and the gas phase is relatively clean air. Compared with the radar, it can be resealed and used in a small amount of vapor phase volatilization. But this thing is ideal when the gas phase is in the atmosphere, otherwise the maintenance amount will be increased.

Extended reading: Industrial Tank level indicators and Tank Level Gauges

Pulse Radar Level Transmitter

Pulse Radar Level Transmitter is a transmitter that generates a 6.3 GHz pulse from the microprocessor control circuit and transmits it through the surface of the sensor.

Due to the strong penetrating power of the pulse radar, some foam, smoke, water vapor, etc. that usually interfere with the ultrasonic level gauge do not have any interference to the pulse radar level gauge.

Extended Reading: Types of Level Transmitters:

Guided Wave Radar Level Sensor

Guided Wave Radar Level Sensor for Liquid and Bulk Solids Contact level measurement.

Guided wave radar is a measuring instrument based on the principle of time travel. The radar wave runs at the speed of light. The operating time can be converted into level signals by electronic components. The probe emits high-frequency pulses and propagates along the cable or rod probe. When the pulse meets the surface of the material, it is reflected back and received by the receiver in the instrument. And convert the distance signal into level signal. SIRD-701 Guided Wave Radar Level Sensor is suitable for liquid and Bulk Solids measurement, and complex process conditions.

Extended reading: GWR Solid Level Sensor-for Cement silo-Ash powder measure

More Featured Radar Level Sensors

Level Senors for Tank Level Measurement

Tank level senor is a level sensor used to measure the tank level. The liquid level is the level of the liquid in a sealed container (such as a water tank) or an open container (water tank). The instrument that measures the liquid level is called a liquid level sensor, a liquid level gauge or a liquid level transmitter. The liquid level sensor is a kind of level instrument.

Hydrostatic, Ultrasonic, Magnetostrictive, Radar, Differential Pressure are commonly choices for tank level measurement. Liquid level sensors have been around for decades for leak detection or level measurement. Common measured mediums are: Water, Fuel, Diesel, Gasoline, diesel, liquefied gas, liquid ammonia, etc.

Read more about: 7 Level Senors for Tank Level Measurement

FAQ

Sino-Inst offers over 10 Radar Tank Level Sensors for level measurement. About 50% of these are Radar level meters, 40% is the tank level sensor.

A wide variety of Radar Tank Level Sensors options are available to you, such as free samples, paid samples.

Sino-Inst is a globally recognized supplier and manufacturer of radar level measurement instrumentation, located in China.

Request a Quote

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

Silo Level Sensor is specially used for level measurement of solid material silos (including fine ore silos). Perfect Solutions for Silo Level Monitoring and Control.

SI-FMF21 FMCW Radar Silo Level Sensor adopts 120GHz FM continuous wave technology, 10GHz sweep bandwidth, and has electromagnetic characteristics in the terahertz band. It has the ability to penetrate materials with small dielectric constant. In a strong adhesion and strong dust environment, the measurement is stable without interference and does not require any purge device. The measuring distance can reach 150 meters. Perfect solutions in continuous level measurement and remote inventory management systems.Like the storage of powders & bulk solids in bins, silos, vessels, etc.

Features of SI-FMF21 FMCW Radar Silo Level Sensor

• The 120GHz frequency modulated continuous wave radar level meter only needs 80ms to complete a complete measurement and calculation process for a distance of 100m. This allows the system to have more time and resources to deal with all kinds of things in meter level applications. For example: probability evaluation/prediction/credibility analysis/input/output/communication, etc.
• The PTFE lens antenna is fully enclosed and potted. It solves the structural treatment of the antenna near-field radiation suppression. This makes it have good directional performance. The beam angle is controlled within 1 degree. The manufacturing process difference of batch products , The deviation may be about ±0.3 degrees.
• The 120GHz frequency modulated radar level gauge is especially suitable for high temperature, high pressure or high dust, and multiple agitated spaces. It meets many measurement requirements that require a large range and high precision.
• Evaporation and dust will not affect the measurement;
• Level measurement of corrosive liquid, no contact, no corrosion-stable measurement;
• Liquid level measurement of foam and strong dust;

Specifications of SI-FMF21 FMCW Radar Silo Level Sensor

Radar Silo Level Sensor Applicaitons

Radar Silo Level Sensor is suitable for high temperature and high-pressure reactor, super large storage tank, and still tube measurement.

Radar Silo Level Sensor is suitable for high-precision metrological measurement and perspective measurement.

Radar Silo Level Sensor is suitable for extremely harsh working conditions such as strong dust and steam, and storage tanks with special processes such as stirring and heating rods.

Extended reading: GWR Solid Level Sensor-for Cement silo-Ash powder measure

Solutions for Silo Level Monitoring and Control

Cement Silo Level Indicator

Cement industry material process storage level detection. Including clinker warehouse, raw meal homogenization warehouse, raw material mixing warehouse, limestone storage warehouse, raw coal warehouse and cement mixing warehouse, etc.

The cement silo (tank) is not a simple silo. It also contains many auxiliary devices. Such as arch breaking device, dust collector, level gauge, pressure safety valve and so on.
Today, I will mainly explain to you: the main functions and characteristics of the cement silo (tank) level sensor:

Extended reading: Radar level sensor for solids – Dust solid level measurement

First, the cement silo (tank) liquid level sensor is a sensor used to detect the height change of the material in the container. It can continuously detect the height, volume and other values ​​of the material, and transmit the relevant information to the computer or display instrument.

Secondly, the cement tank liquid level sensor is mainly used to automatically detect and control the limit material level of various materials (such as powder, granules or blocks). Different types of material straightening machines can meet the requirements of different working conditions.

Furthermore, in the concrete mixing equipment, the cement tank is a closed storage device. The user cannot intuitively understand the amount of powder in it, and a liquid level sensor is needed at this time.
The liquid level sensor in the cement tank can accurately record the position of the material in the cement tank for easy management.

Lime Silo Level Sensor

As a multifunctional product, lime is not only used to purify raw materials, but also often used to clean and neutralize waste water from sugar beets. The resulting by-products are also useful because it contains a mixture of lime and organic residues. They are usually reused as soil additives and conditioners in agriculture and are rich in organic matter.

Most sugar processing plants have their own lime kilns, which require good high-purity limestone to burn. This “high calcium” limestone is converted into quicklime in a lime kiln at a temperature of 900°C. In order to obtain the milk of lime, the “calcined” lime is mixed into the water. In this process, accurate and reliable level measurement can ensure consistent production.

The processing area must have a high level of safety. Because lime is harmful, especially irritating to the skin and eyes. All outer surfaces of the radar level gauge are of plastic or stainless steel construction, with a fully enclosed PTFE antenna system. This means that in this highly alkaline environment, the sensor will have minimal corrosion and a longer service life.

Extended reading: Radar Level Meter for Corrosive Liquids

Featured Silo Level Monitoring Systems

FAQ

Request a Quote

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

High temperature level sensor is based on FMCW Radar to measure high temperature liquid. Non-contact measurement. The temperature is as high as 240°C. IP67 protection. rs485 output.

High Temperature Level Sensor is also called high temperature molten salt level sensor. Use continuous frequency modulation wave radar to measure. SI-FMF15 FMCW Radar High Temperature Level Sensor is manufactured based on the principle of linear frequency adjustment-radar working. It can ensure the accurate and stable liquid level measurement of the radar in high temperature, high pressure, strong corrosion, strong dust and other environments. High temperature type 240℃, special customization can reach 1200℃.

Advantages of FM Radar Level Meter

FMCW radar level meter is suitable for various complex working conditions. It can also ensure measurement stability and accuracy in high temperature and high dust environments.

• Not affected by atmospheric precipitation;
• Ambient temperature from -60℃;
• from outside the storage tank;
• The inner antenna of the terahertz FM continuous wave radar level meter is heated and protected by a fluoroplastic lens
• The measurement beam is narrow. Easy installation and stable measurement;
• Level measurement accuracy;
• Not limited by the temperature in the container;
• Evaporation and dust do not affect the measurement;
• Boiling liquid level measurement;
• Corrosive liquid level measurement. No contact, no corrosion;

FMCW Radar Working Principle

In the early years, a non-contact frequency-modulated continuous wave radar level meter produced by a company in the United States used FMCW technology to perform more accurate level measurement for more complex occasions. This FMCW technology has caused a global sensation. It has made more researchers devote themselves to FMCW technology. FMCW here is frequency modulated continuous wave.

This FMCW radar technology uses a high frequency sweep signal typically 8.5 to 9.9 GHz. The radar signal is sent from one end of the antenna and is received by the receiver after time t. The frequency difference Δf between the transmitting and receiving is converted into the level of the measured medium by the Fourier transform method.

However, with the development of the times and the efforts of scientific researchers, the continuous waves of 26GHz, 28GHz, 80GHz and 120GHz have been derived from the FM continuous wave radar level gauge.

FM continuous wave radar level meter is a general-purpose instrument for measuring coal, cement, grain, alumina, limestone, chemical raw materials and other materials. It is widely used in cement, chemical, environmental protection, electric power, food and other industries.

The 120GHz radar level meter is especially suitable for high temperature, high pressure or high dust, and multi-stirring environments. It meets many measurement requirements that require a large range and high precision.

Terahertz FM CW radar level meter mainly uses triangular FM continuous wave. After the transmitted signal is scattered by the target, it is accepted by the antenna. The delay time τ=2R/c. Among them, R is the distance from the target to the antenna, and c is the propagation speed of the electromagnetic wave. .

When the detection target is stationary, the distance calculation formula is R=(cT/4B)×fb, where T is the period of the triangular wave, and B is the frequency modulation bandwidth.

From the formula R=(cT/4B)×fb, it can be obtained that the frequency fb of the beat frequency signal has a linear relationship with the distance R. Therefore, the key to the ranging system is to measure the frequency of the beat frequency signal.

Under certain conditions of bandwidth B and period T, the distance R can be calculated as long as the frequency fb is obtained. Therefore, the accuracy of frequency measurement directly affects the accuracy of distance measurement.

The difference frequency signal is usually sampled by A/D and then calculated by FFT to obtain the discrete spectrum of N points. Then fb is obtained by the peak frequency of the spectrum. Because the discrete spectrum will have a frequency domain sampling interval △f=fs/N.

In the formula, fs is the sampling frequency, and N is the number of sampling points.

The discrete spectrum sampling obtained by FFT generally cannot collect the peak point of signal frequency. That is, the integer multiple of the frequency interval does not coincide with the peak point, which causes the result of FFT analysis to be inconsistent with the actual frequency, resulting in frequency estimation error.

Extended Reading: Case: High Temperature Radar Level Transmitter for Melted Salt-Solar Photovoltaic Power Station

Level Measurement with FMCW Radar in Steam and High Temperature

When the measured medium is heated, or stored products with relevant physical and chemical properties (acids, alkalis, alcohols, etc.), there may be vapor accumulation in the upper space of the measured medium.

There are various vapors in the air in the space between the level gauge and the medium. It will not affect the accuracy and stability of the measurement. The FM continuous wave radar level gauge has this characteristic.

Level measurement by means of ultrasonic or optical (laser) means is a very unstable and inaccurate method. Because the speed of sound propagation depends on the composition of the atmosphere through which it passes. Direct optical visibility is required for measurement by laser means.

Level Sensors for High Temperature Applications

The high temperature and high pressure guided wave radar level sensor is specially designed for high temperature and high pressure occasions. The product is mainly used for liquid level measurement on various boiler drums. Has high safety and accuracy. The highest rated pressure reaches 40MPa. The highest rated temperature reaches 400℃. It is suitable for high and low pressure heaters, condensers and deaerators in thermal power plants. As well as for liquid level measurement under high temperature, high pressure, vacuum and other steam conditions.

Hydrostatic level transmitter is also called hydrostatic level gauge. The rod-type Hydrostatic level transmitter utilizes the linear relationship between liquid height, density, and pressure. The change of the level is converted into a linear 4-20mADC standard signal output. Suitable for tank level measurement. Flange or threaded installation. Can withstand high temperatures up to 450 ℃.

High Temperature Float Switch

Float level sensor can be widely used for continuous measurement of the liquid level (boundary level): High temperature. High pressure. Viscous, dirty media. Asphalt, wax-containing oil products and flammable, explosive, corrosive media.

Float level sensor (float switch) is one type continuous level sensor for industrial level measurement. Float level sensor has a magnetic float that rises and falls as liquid level changes. The movement of the float creates a magnetic field. Through the magnetic coupling effect, the internal resistance of the sensor changes linearly. The resistance change is converted into a standard current signal of 4 ~ 20mA by an intelligent converter. The percentage of the liquid level, 4 ~ 20mA current and liquid level value, can be displayed on site. Applications like: water tank, fuel tank, level measurement and level control. Vertical, horizontal, and side mounted, all can be satisfied.

Intelligent Solutions for High Temperature and Pressure

Related Blogs

Sino-Inst offers over 10 FMCW Radar High Temperature Level Sensors for level measurement. About 50% of these are Radar level meters, 40% is the tank level sensor.

A wide variety of FMCW Radar High Temperature Level Sensors options are available to you, such as free samples, paid samples.

Sino-Inst is a globally recognized supplier and manufacturer of FMCW Radar High Temperature Level measurement instrumentation, located in China.

Request a Quote

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com
