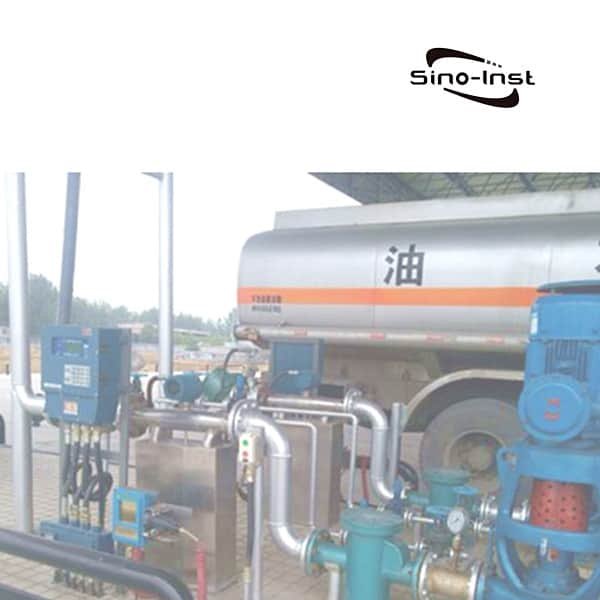

Petrol flow meters are often used for inline monitoring of gasoline flow rates. Positive displacement & Turbine flow meters are commonly used industrial fuel flow meters.

Petrol is also called industrial gasoline. As industrial gasoline, it can be divided into industrial solvent gasoline, extraction solvent gasoline, rubber industrial solvent gasoline and so on. Liquid turbine flowmeter and oval gear flowmeter are generally used to measure gasoline.

Featured petrol flow meters for sale

Further reading: Industrial LPG/Propane flow meter

Industrial petrol flow meters Types

Petrol positive displacement flow meter

Volumetric Flow Meter, as a mechanical flow meter, is also called a Positive displacement flowmeter. It can measure the volume flow of high viscosity and corrosive fluids.

Volumetric Flow Meter is a mechanical instrument used to measure the volume flow of fluids. A volumetric flow meter is an instrument which can measure either directly or indirectly the volume of a substance which is passing through a specific location in a set period of time. The main advantage of these types of flow meters is that they can handle high viscosity and corrosiveness fluid.

Read more about: Large-diameter Oval Gear-Marine Fuel Flow Meter

Tubrine Flow Meter

Turbine flow meters are velocity flow meters, also called impeller flow meters. Can be used to measure the instantaneous flow and cumulative flow of liquids and gases.

Turbine flowmeters are widely used in flow measurement: petroleum, organic liquids, inorganic liquids, liquefied gas, natural gas, coal gas and cryogenic fluids. Turbine flowmeter signals can be divided into pulse signals or current signals (4-20mA). It is suitable for use with secondary display, PLC, DCS and other computer control systems.

Turbine Flow Meter reference price: USD 200-1700/pc.

You may like: Industrial CO2 flow meters for sale

Coriolis Mass Flow Meter

Coriolis flow meter is also called Coriolis mass flow meter. Based on the principles of Micro motion mechanics. Coriolis meters provide extremely accurate mass or volume flow, density and temperature measurement.

A Coriolis flow meter is a type of mass flow meter. It is designed differently and works differently than thermal or differential mass flow meters. Coriolis meters provide extremely accurate mass or volume flow, density and temperature measurement with few moving parts and no straight pipe requirements.

Read more about: Density, Mass Flow, And Volumetric Flow

Fuel Flow Meters for Diesel-Marine fuel-Industrial oil

Extended reading: Fuel Flow Meter for Boat-Selection & Application

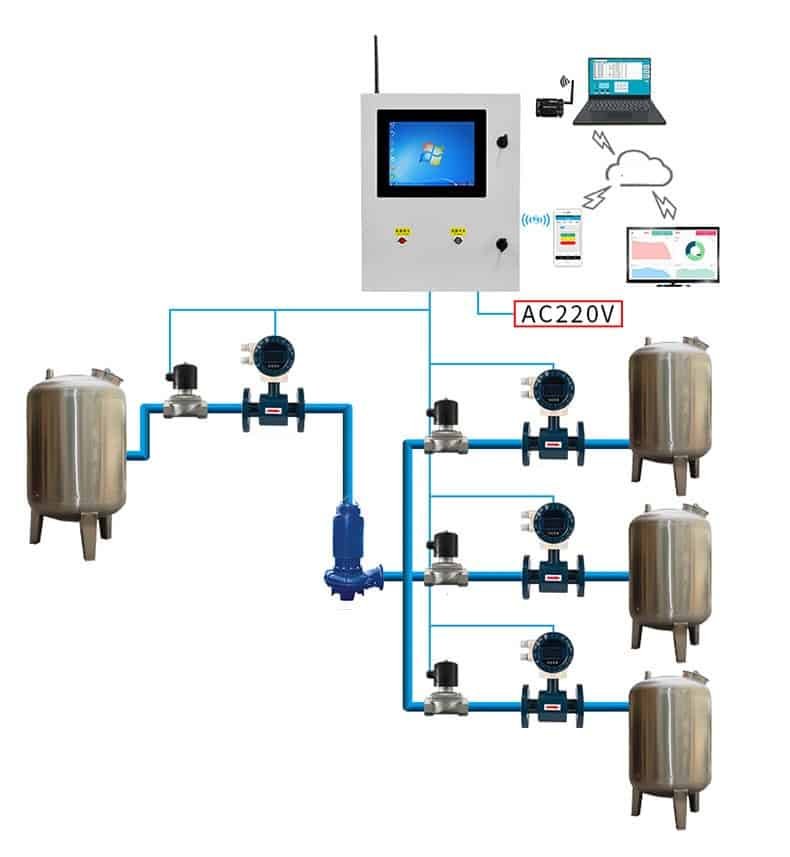

Industrial Petrol/Diesel Quantitative Control Systems

Dosing control systems are widely used for dosing process control of fluid media, filling, proportioning, packaging and other metering equipment. Together with various flow meters, they can measure, calculate, convert, display, record, communicate and control the flow and process of flowing liquids. It can greatly improve the efficiency of industrial production and reduce production costs. It has to be said that it is the gospel of industrial production control.

As workers’ wages continue to rise, automatic control has become the trend.

Intelligent digital display quantitative control instrument is one of the items that many enterprises will use or need to improve at present.

For example: automatic filling system, automatic dosing system, automatic loading system, automatic proportioning system, etc..

For the traditional controller dosing control system in the production process of complex work, poor precision and other shortcomings. It is developed and produced with PLC as the main body and touch screen or LCD as the auxiliary dosing control box. It has many advantages such as easy to operate and learn, good working stability and powerful function. It can directly replace manual dosing, manual dosing, and the accuracy is better than manual. At the same time, this system has the characteristics of intuitive display, manual control or automatic control combination.

Industrial Petrol/Diesel Quantitative Control Systems are especially suitable for oil blending, water blending, chemical blending, dosing, water injection and quantitative or steady flow control of various liquids, gases or steam. It is especially suitable for enterprises that still use manual operation for tank filling/batching/dosing and do not want to invest too much cost, but want to improve the working efficiency.

More Feature Flow Measurement Solutions

Read more about: Industrial flow meters for Different industrial applications

Sino-Inst is a manufacturer of Industrial Petrol Flow meters. We offer more than 20 types of Industrial Petrol Flow meters, 40% are turbine flow meter, 30% are mechanical fuel flow meters and the rest.

We have a variety of Industrial Petrol Flow meters for most fuels including diesel, biodiesel, kerosene, gasoline, motor oil, DEF, heating oil, grease, and certain chemicals. Industrial Petrol Flow meters are available in a variety of sizes, from DN4 to DN200. Extended reading: High-quality hydraulic fluid flow meters

Industrial Petrol Flow meters can be stable flow measurement without modifying the pipeline. This greatly meets the measurement needs of many applications.

Our Industrial Petrol Flow meters solutions are brought together here to allow you to choose from a variety of flow rates or technologies. The most common types are mechanical or digital readout fuel meters. When it comes to technology, either turbine or oval gear diesel flow meters can be purchased directly from our website.

Sino-Inst’s Industrial Petrol Flow meters, made in China, have good quality, with better prices. Our flow measuring instruments are widely used in China, India, Pakistan, USA and other countries.

Sino-Inst’s entire team is well trained, so we can ensure that each customer’s needs are met. If you need any help with your product requirements, whether it is Industrial Petrol Flow meters, level sensors, or other equipment, please give us a call.

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

Cheap flow meters means to choose the lowest cost flow meter while satisfying your measurement needs. How to choose the lowest cost flow meter?

Cheap flow meters are not equal to any flow meter. Different flowmeters are required to measure air velocity, water, and other liquids. For example, if you need to measure water flow rate, electromagnetic flow meters and ultrasonic flow meters are more suitable. On top of this, let’s choose a low-cost configuration.

RFQ More Flowmeters

Featured Cheap flow meters for Sale

Cheap flow meter for water

The measurement of water flow is the most widely used method in industrial production. Raw water, domestic sewage, industrial wastewater, etc. all need to be monitored. So how to choose a low-cost water flow meter?

Here, Sino-Inst proposes the following suggestions for you based on experience:

1. If it is measuring drinking water, beverages, etc. Sanitary electromagnetic flowmeters can be used. Meet the requirements of drinking and hygiene.
2. If it is industrial wastewater or corrosive liquid, you can choose electromagnetic flowmeter. Choose the lining made of tetrafluoroethylene and the electrode of 316L, which can resist corrosion.
3. If it is residential water, you can use an ultrasonic water meter. Simple to use. low cost.
4. For water flow measurement with super large pipe diameters, plug-in electromagnetic flowmeters or externally clamped ultrasonic flowmeters can be used. Can reduce costs.
5. If it is a short-term measurement requirement, or for convenience, you can choose an external ultrasonic flowmeter. The host can be handheld or wall-mounted, and the cost is extremely low. And can be applied to different pipe diameter measurement.

Of course, the above is only Sino-Inst’s suggestion. In order to choose the right water flow meter, you can contact our sales engineer. According to your measurement medium, pressure, pipe diameter, use function, accuracy and all requirements, choose the best cost flowmeter.

Maybe you will like: the prices of electromagnetic flowmeter

How much is a 2 inch water flow meter? Let’s find out.

Industrial water flow meter

Water flow meters are flow meters that can diaplay the flow rate of industrial water pipe.

A water flow meter measures the amount of water flowing through a pipe. We have several kinds to choose from, depending on the application, maintenance needs, and budget.

There are four common water flow meter types:

Turbine (also called mechanical), Vortex, Ultrasonic, and Magnetic. We will tell you everything you need to know about them and help you choose one for your application.

Digital water flow meters|Water flow meter types

Read More

You may like: Digital Flow Meters Guide| Liquid and Gas

Sino-Inst offers over 30 Cheap flow meters-Low Cost products. About 50% of these are differential pressure flow meters. 40% are water meters (like the Insertion Turbine Flow Meter), and 40% are water treatment (like the Annubar flow meter ).

A wide variety of Cheap flow meters-Low Cost options are available to you, such as free samples, paid samples.

Sino-Inst is a globally recognized supplier and manufacturer of Cheap flow meters-Low Cost, located in China.

The top supplying country is China (Mainland), which supply 100% of the Cheap flow meters-Low Cost respectively.

Sino-Inst sells through a mature distribution network that reaches all 50 states and 30 countries worldwide. Cheap flow meters-Low Cost products are most popular in Domestic Market, Southeast Asia, and Mid East.

You can ensure product safety by selecting from certified suppliers, with ISO9001, ISO14001 certification.

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

Digital gas flow meters are flow meters used to monitor and control the gas flow rate or mass. Digital gas flow meters are designed to measure different types of gases. Like Air, N2, O2, CO2, and more.

Digital gas flow meters can measure the flow of a wide variety of gases. According to measurement principles, there can be positive displacement gas flow meters, velocity gas flow meters, and mass gas flow meters. How to choose the right Digital gas flow meters? We will discuss in detail next.

Featured Digital gas flow meters for Sale

Are you looking for a flow meter for measuring gas volume or mass flow? For Air-O2-N2-CO2 etc.

Every day, in the production process, the production or consumption of various gases may need to be metered. Accurate gas measurement is important work.

Sino-Inst offers volumetric or mass flow meters available for various gases.
If you don’t know how to choose the right Digital Gas Flow Meters. Please contact our sales engineer and we will provide you with a quotation based on your measurement needs.

First, you can start with your measurement needs. Do you need to get the volume flow or mass flow of the gas being measured?

Velocity flowmeter

Velocity gas flow meters generally consist of a flow sensor and a display.

For occasions where temperature and pressure change, a pressure gauge (sensor or transmitter), a thermometer (sensor or transmitter), a flow totalizer (temperature and pressure compensation) or a flow computer (temperature, pressure and compression factor compensation) are required.

For occasions with higher accuracy requirements (such as trade natural gas), an online chromatograph is also configured to continuously analyze the components or physical properties of the mixed gas to calculate the compression factor, density, calorific value, etc.

The main industrial applications are:

① Turbine flowmeter:
When the fluid flows through the turbine flow sensor, the turbine is forced to rotate under the action of the fluid thrust. Its rotational speed is proportional to the average flow velocity of the pipeline. The rotation of the turbine periodically changes the reluctance value of the magnetoelectric converter. The magnetic flux in the detection coil follows Periodic changes occur, generating periodic electrical pulse signals. In a certain flow (Reynolds number) range, the electrical pulse signal is proportional to the volume flow of the fluid flowing through the turbine flow sensor.

②Vortex flowmeter:
A bluff vortex generator is placed in the fluid. The fluid is alternately separated on both sides of the vortex generator to release two regular rows of alternating vortex streets. In a certain flow (Reynolds number) range, the separation frequency of the vortex is proportional to the volume flow of the fluid flowing through the vortex flow sensor.

③ Precession turbine flowmeter:
When the fluid passes through the spinner composed of helical guide vanes, the fluid is forced to rotate strongly around the centerline to form a vortex turbine. The center of the vortex precesses along a conical spiral when passing through the enlarged tube. In a certain flow rate (Reynolds number) range, the precession frequency of the vortex flow is proportional to the volume flow of the fluid flowing through the precession vortex flow sensor.

④Time difference ultrasonic gas flowmeter:
When ultrasonic waves pass through a flowing fluid, within the same propagation distance, their propagation velocities are different in the forward flow direction and the countercurrent direction. In a wide range of flow (Reynolds number), the time difference is proportional to the volumetric flow (average velocity) of the fluid being measured in the pipe.

Positive displacement flowmeter

The gas volumetric flowmeter is a mechanical instrument. It is generally composed of a measuring body and a totalizer. For occasions where temperature and pressure change, a pressure gauge (sensor or transmitter), a thermometer (sensor or transmitter), a flow rate Totalizer (temperature and pressure compensation) or flow computer (temperature and pressure and compression factor compensation).

Inside the positive displacement flowmeter, there is a fixed large space and a set of rotating bodies that divide the space into several small spaces of known volume. Such as waist wheel, membrane, drum, scraper, oval gear, piston , screw, etc.

The rotating body rotates continuously under the action of the fluid pressure difference, and continuously discharges the fluid from a small space of known volume.

According to the number of rotations of the rotating body in a certain period of time, the volume of fluid flowing through can be obtained.

In the standard state, the volume flow calculation formula of the positive displacement flowmeter is the same as that of the velocity flowmeter.

Differential pressure flowmeter

Differential pressure flowmeter is based on Bernoulli equation and fluid continuity equation. According to the throttling principle. When the fluid flows through the throttling part (such as standard orifice, standard nozzle, long diameter nozzle, classic venturi nozzle, venturi Sharp nozzle, etc.), a pressure difference is generated before and after it. This differential pressure value is proportional to the square of the flow.

Among the gas flowmeters, the standard orifice plate throttling device differential pressure flowmeter is the most widely used because of its simple structure, low manufacturing cost, most complete research and standardization.

Extended reading: What is an air pressure transducer?

Gas Mass Flow Meter

Thermal Mass Flow Meter can directly measure the mass flow of various gases. Unaffected by changes in viscosity, density, temperature, or pressure.

Thermal Mass Flow Meter is a true mass flow meter. No temperature and pressure compensation is required. Thermal gas mass flow meters are designed based on the principle of thermal diffusion. Including natural gas, coal gas, liquefied gas, flare gas, argon, carbon dioxide and other mixed gas flow measurement.

Guess you like: Gas Mass Flow Meter

Read more about: Flow Meter Selection Guide

Digital Gas Flow Meters

• Nitrogen flow meter
• Compressed Air Flow Meter
• Oxygen Flow Meters
• CO2 flow meters
• Biogas Flow Meters
• LPG flow meters
• Propane flow meter
• Natural Gas Flow Meter
• Steam Flow Meters

Digital Nitrogen Gas Flow Meter

Nitrogen is required in many processes of the chemical and pharmaceutical industry; predominantly as protective gas, to prevent the occurrence of explosive atmospheres。

Such as when handling dusty products or solvents.

If your work requires you to use nitrogen, having a flow meter installed on your tank is a great way to save some money.

These indicators let you know whether gas is moving through the line, often via the use of a levitating ball, a pressure gauge, or other visual cue.

These options are simple to use and reliable, making them must-haves for welders, HVAC technicians, and more.

Please follow the purchasing guide below. You will find your most suitable Nitrogen flow meter!

Read More….

Compressed Air Flow Meter

Compressed Air Flow Meter is the digital flow meter work for the air compressor. Air consumption is an important info for industrial inline gas flow pipe. According to the measurement conditions, compressed air flow meter could be different types. Thermal mass flow meters, Ultrasonic flow meters, Vortex flow meters, Turbine flow meters. And the differential pressure flow meters (Orifice plate ) are also suitable for compressed air. With the Pressure and Temperature compensation. Sino-Inst’s compressed air flow meters are more affordable and complete.

Read More…..

Oxygen Flow Meters

Oxygen Flow Meters are digital flow meters that can measure industrial oxygen. It is very important to choose a suitable flow meter to measure and monitor the oxygen flow.

Oxygen and hydrogen are special gases, so you must choose a suitable flow meter. Several commonly used flow meters that can measure oxygen are precession vortex flowmeters, vortex flowmeters, DP flowmeters, and thermal gas mass flowmeters. The selection of oxygen flow meter must provide specific parameters, such as pipe diameter, working pressure, temperature, flow range, functional requirements, and so on.

Read more

CO2 flow meters

CO2 flow meters are instruments that can measure the flow of gaseous or liquid carbon dioxide. CO2 is a common industrial gas, and effective measurement is very important.

Carbon dioxide (CO2) is a colorless, odorless, or colorless odorless gas at room temperature and pressure. We often recommend precession vortex flowmeters, v-cone flowmeters, vortex flowmeters, gas turbine flowmeters, etc. Under different working conditions, we will choose different flow meters for customers.

Read more.

Biogas Flow Meters

Biogas Flow Meters are instruments that can measure the flow of biogas. Could be a vortex flow meter, thermal mass flow meter, etc. Commonly used in biogas stations, biogas production fermentation tanks, etc.

Biogas Flow Meters measure the flow of biogas in the production and use process.
At present, several biogas flow measurement technologies have been widely used in the biogas field, including turbine flow meters, vortex flow meters, orifice flow meters, ultrasonic gas flow meters, etc.

Read more.

Digital LPG flow meters

LPG flow meter is used for flow measurement of liquefied petroleum gas. The flow measurement of LPG is very important in industrial production, transportation and trade settlement.

LPG gas (Liquefied petroleum gas) is a kind of hydrocarbon with propane and butane as its main components. LPG is used for heating, motor fuel, industrial applications, and agriculture. LPG can be in a gas or liquefied state. Different types of industrial LPG flow meters with accurate and reliable performance. Such as thermal dispersion flow meter, Coriolis flow meter, gas turbine flow meter, vortex flow meters.

Read more.

Extended reading: Cryogenic Flow Meters | Liquid Nitrogen-Liquid Oxygen

Propane flow meter

A propane flow meter refers to a flow meter that can measure the volume or mass flow of propane gas. Also often called LPG gas flow meter.

Propane is also generally referred to as liquefied petroleum gas (LPG). So what is the difference and connection between propane and LPG? Next, let’s take a look together.

Natural Gas Flow Meter

Natural gas flow meter is mainly used for inline measurement of natural gas flow. Natural gas flow meter is mainly used for industrial production and trade settlement.

At present, the flowmeter products used for natural gas flow measurement roughly include: gas waste wheel flowmeter, gas turbine flowmeter, precession vortex flowmeter, thermal mass flowmeter, vortex flowmeter, ultrasonic flowmeter, and orifice flowmeter Wait. Let’s make a simple comparison on the use of these flow meters.

Read more.

Steam Flow Meters

Steam flow measurement has always been a problem. Today we solve a problem of temperature and pressure compensation. So Do you need temperature and pressure compensation for Steam Flow Measurement?

There are two types of steam, saturated steam and superheated steam.
The temperature and pressure compensation is superheated steam. For the real saturated steam, only temperature or pressure compensation is required. Check the density table according to the temperature and pressure during measurement to obtain the required mass flow.

Read more.

More about: Flow Measurement of Nitrogen

Frequently
Asked
Questions

Help Center

What are the types of flow meters?

Flow Metering Principles

• Differential Pressure Flowmeters
• Velocity Flowmeters
• Positive Displacement Flowmeters
• Mass Flowmeters
• For Open Channel Flowmeters – weirs, flumes, submerged orifices, current meters, acoustic flow meters and more

For different working principle, We offer different types of flow meters, like:

• Differential Pressure Flow Meters
• Orifice Plate
• Venturi Tube
• Flow Nozzles
• The Sonic Nozzle – Critical (Choked) Flow Nozzle
• Calorimetric Flowmeter
• Ultrasonic Doppler Flowmeter
• Positive Displacement Flowmeter
• Variable Area Flowmeter or Rotameter
• Velocity Flowmeters
• Pitot Tubes
• Electromagnetic Flowmeter
• Turbine Flowmeter
• Vortex Flow Meter
• Thermal Flowmeter
• Coriolis Flowmeter
• Mass Flowmeters
• Open Channel Flowmeters

How do you measure gas flow rate?

The gas velocity in the pipeline is the basis for calculating the gas flow. The way to measure the gas flow rate is direct measurement or conversion through pressure measurement.

Enterprises usually use Pitot tubes (or dynamic pressure velocimetry tubes) to measure the dynamic pressure of the fluid in the pipeline first, and then calculate the flow velocity and average flow velocity at this point (the average flow velocity should be used to find the gas flow).

Because the velocity measuring tube is used to measure the velocity of the pipeline, it is only the local velocity of a certain point on the pipeline section. The flow velocity at each point on the pipeline is not the same. It is necessary to measure the flow velocity at multiple points on this section. Find the average dynamic pressure to calculate the average flow velocity.

How does a gas flow meter work?

There are many types of gas flow meters. Such as common thermal mass flowmeters, vortex flowmeters, differential pressure flowmeters, etc. Different kinds of gas flow meters are based on different working principles.

The working principle of gas flowmeter, the common types are as follows:

1. Thermal gas mass flowmeter: designed based on the principle of thermal diffusion, the instrument uses the constant temperature difference method to accurately measure the gas. The sensor section consists of two reference grade platinum resistance temperature sensors, suitable for the measurement of all gas flow meters (except acetylene)
2. Precession vortex flowmeter: adopts the latest micro-processing technology. It has the advantages of strong function, wide flow range, operation and maintenance verification, convenient installation and use, etc. It is widely used in various gases such as petroleum, chemical industry, electric power, metallurgy, coal, etc. Measurement of liquids.
3. Turbine flowmeter: a speed meter. It has high precision, good repeatability, simple structure, high pressure resistance, wide measurement range, small size, light weight, small pressure loss, long life, simple operation, convenient maintenance, etc. Advantages. It is used to measure the volume flow and accumulation of low viscosity, non-corrosive, clean liquids in closed pipelines. It can be widely used in petroleum, chemical, metallurgy, organic liquid, inorganic liquid, liquefied gas, city gas pipeline network, pharmaceutical, food, papermaking and other industries.
4. Vortex flowmeter: The principle of Karman vortex is adopted. A triangular column-shaped vortex generator is set in the fluid, and regular vortices are alternately generated from both sides of the vortex generator. This vortex is called Karman vortex, and the vortex flowmeter is the current One of the main flow meter products in the world. It is widely used in petroleum, chemical, metallurgy, heating and other departments. Detect and measure the flow of liquid, gas and steam.
5. Differential pressure flowmeter: Differential pressure flowmeter is based on Bernoulli equation and fluid continuity equation. According to the throttling principle, when the fluid flows through the throttling part (such as standard orifice, standard nozzle, long Diameter nozzles, classic venturi nozzles, venturi nozzles, etc.). There is a pressure difference before and after it, and this differential pressure value is proportional to the square of the flow. Among the gas flowmeters, the standard orifice plate throttling device differential pressure flowmeter has a simple structure and low manufacturing cost. It has been standardized and has been widely used.

What is a digital mass flow meter?

Mass flow meter directly measures the mass flow of the medium passing through the flow meter. It can also measure the density, temperature and viscosity of the medium

Mass flow meter is a flow measuring instrument that measures the mass flow in the pipeline. The volume of a fluid is a function of fluid temperature and pressure and is a dependent variable. The quality of a fluid is a quantity that does not change with time, space temperature, and pressure.

You may like: Digital Flow Meters for liquid and gas

Related Blogs

Extended reading: Gas Mass Flow Meter

Sino-Inst offers over 50 Digital gas flow meters, with Best Price.

A wide variety of Digital gas flow meters options are available to you, such as free samples, paid samples.

About 13% of these are Vortex flow meter, 14% are Procession Vortex flow meter, 25% are mass flow meter. 13% are DP flow meters, and others are GASTurbine Flow Meters.

Sino-Inst is mass flow meter suppliers, located in China.

Digital gas flow meters products are most popular in North America, Mid East, and Eastern Europe.

The United States, and India, which export 99%, 1%, and 1% of Digital gas flow meters respectively.

You can ensure product safety by selecting from a certified supplier, with ISO9001, ISO14001 certification. Send RFQ NOW. You may get the price now.

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

Totalizer flow meter is also called Totalizing flow meter. It refers to the totalizing function of the flow meter, or an instrument that can realize flow display and flow totalization.

Totalizer flow meter is also called Totalizing flow meter. It refers to the totalizing function of the flow meter, or an instrument that can realize flow display and flow totalization. The flow totalizer is used in conjunction with the flow sensor. The flow parameters can be measured and displayed, accumulated calculation, alarm, output, data acquisition and communication.

Featured Totalizer flow meters for Sale

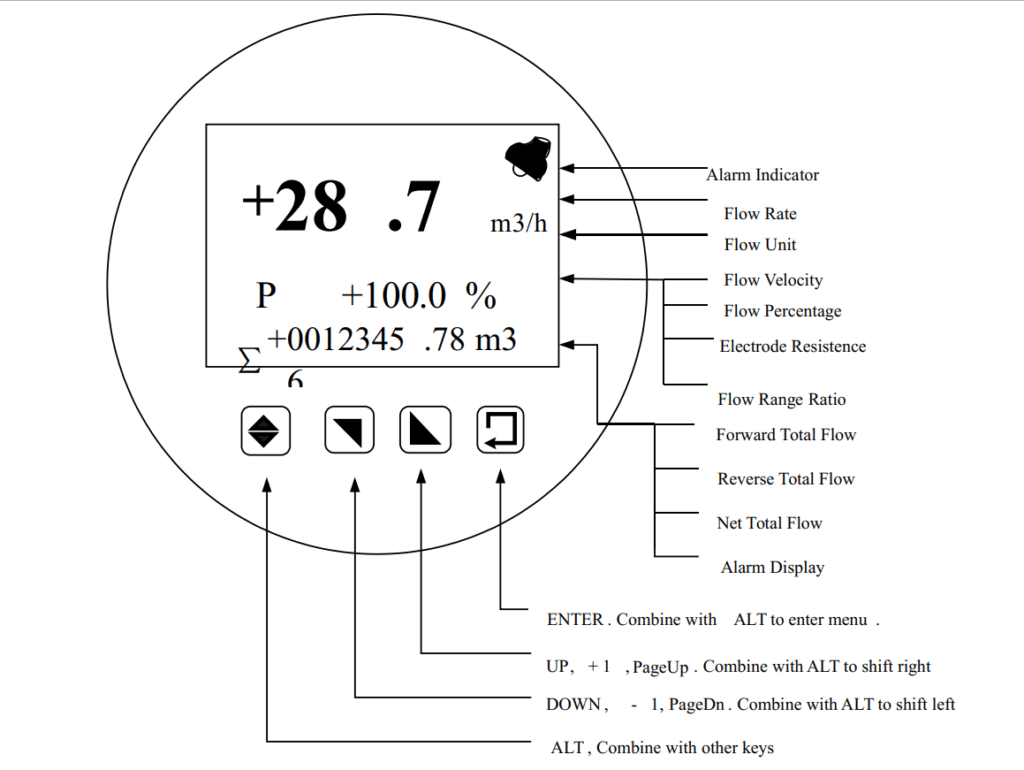

Totalizing flow meter water

An electromagnetic flowmeter is a common water meter in industrial flow meters. It is a fully intelligent flowmeter. It has the function of displaying instantaneous flow and accumulated flow, and there are a variety of flow units to choose from.

Read more about: Digital Water Flow Meters

And its output signal is also diversified, there are (4-20) mA, RS485, pulse, HART and other output signals to meet the needs of different working conditions.

Electromagnetic flowmeter is a commonly used flowmeter in modern flow measuring instruments. Its structure is simple, easy to install and use, and the price is relatively economical. It is very trusted by the majority of users.

For example, in the city water supply unit needs to measure the total daily water supply. At this time, you need to read the required data from the flowmeter. The instantaneous flow rate every hour and the cumulative flow rate within a specific time. It is very convenient to use.

You may like: Digital Flow Meters Guide| Liquid and Gas

Flow meter totalizer calculation

Flow meter totalizer calculation refers to the collection of this flow at a fixed frequency.

If the acquisition frequency is 10hz, that is, 10 acquisitions per second. Accumulate the data collected each time, and divide the accumulated number by 10 to get the flow per second.

If the flowmeter is working at the maximum flow rate, we assume that the value corresponding to 20ma is 65535 (generally, the PLC analog quantity does not have such a high accuracy, so how much depends on the module).

Then double-word operations can meet the requirements. First convert the analog input value into a double word. Accumulate again. After 10 times, the accumulated value is divided by 10 and then transferred to another register. This register is the real cumulative amount.

Flow totalizer working principle

The intelligent flow totalizer is composed of four parts: measurement loop, digital panel meter, regulator and power supply.

The stabilized power supply converts the 220V power supply into a stable DC voltage as the other part of the power supply. The measurement loop processes the signal (voltage, current, etc.) sent by the flow transmitter into a voltage signal.

After A/D conversion, the signal is sent to the JC-775 dedicated central processing unit for processing, and not only to the digital panel meter. Moreover, it must be sent to the regulator, and the control or alarm signal will be output according to the regulation law after comparing with the set value.

How to realize the flow accumulation function in PLC?

First of all, it must be clear that the accuracy of using PLC for flow accumulation is far inferior to electromagnetic flowmeters and other flowmeters and flow totalizers that have their own accumulation function.

For flowmeter converters with accumulation function, the flow accumulation output of the general flow converter is pulse output. High-speed counting can be performed through the high-speed pulse input terminal of the PLC to obtain the cumulative flow.

For flowmeters with only instantaneous flow output, the flow cumulative addition operation is considered in PLC.

When doing flow accumulation in the PLC, you should not use a timer to do it. Because the timer is affected by the PLC scan cycle. It is impossible to be very accurate, and the error of the accumulated data is very large.

At present, general medium and large PLCs directly or indirectly provide the “Totalizer” function block. The essence is to simply accumulate the instantaneous flow of each acquisition cycle.

You may like:

Sino-Inst is Manufacturer of Totalizer Flow Meters. We supply more than 20 kinds of Totalizer Flow Meters. 90% work with flow meters, and other types of instruments.

Totalizer Flow Meters are mainly used for flow measurement of various flowmeters.
It can work with magical flowmeter, turbine flow meter, mechanical flow meter. Especially for differential pressure flowmeters, Totalizer Flow Meters are essential.

Totalizer Flow Meters enable stable flow measurement. This greatly meets the measurement needs of many applications. Can be used from small to large tubes.

Sino-Inst’s Totalizer Flow Meters, made in China, Having good Quality, With better price. Our flow measurement instruments are widely used in China, India, Pakistan, the US, and other countries.

The entire team at Sino-Inst’s has received excellent training, so we can ensure that every client’s needs are met. For assistance with your product requirements, whether it’s aTotalizer Flow Meters, level sensor, or other device, give us a call.

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

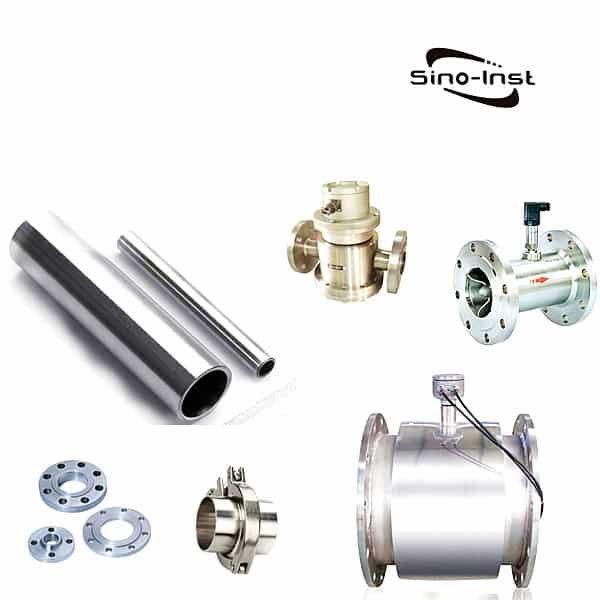

Stainless steel flow meters are made of stainless steel for the flow sensor. When the flowmeter needs to be measured in a clean environment, a stainless steel flowmeter will be selected. Or, when the measuring environment or measuring medium is corrosive, stainless steel flowmeters will also be selected. Stainless Steel Meters with NPT, Tri-clamp, or Flanged Connections can resist magnetization, corrosion, and stability.

Get a Quote

More Flowmeters

Featured stainless steel flow meters for Sale

The corrosion resistance of stainless steel flow meters

Stainless steel flow meters are generally used in corrosive environments. According to different measuring environments and measuring mediums, stainless steel such as 304/316/316L can be used.

304 stainless steel
As a widely used steel, 18Cr-8Ni has good corrosion resistance, heat resistance, low-temperature strength and mechanical properties. It has good hot workability such as stamping and bending, and no heat treatment hardening phenomenon (non-magnetic, temperature -196℃ ~800℃).

316 stainless steel

18Cr-12Ni-2.5Mo is added with Mo, so its corrosion resistance, atmospheric corrosion resistance, and high-temperature strength are particularly good, can be used under harsh conditions; excellent work hardening (non-magnetic). Equipment used in seawater, chemical, dye, paper, oxalic acid, fertilizer, and other production equipment; photography, food industry, coastal area facilities, ropes, CD rods, bolts, nuts

316L stainless steel

18Cr-12Ni-2.5Mo low carbon as the low C series of 316 steel, in addition to the same characteristics as 316 steel, it has excellent resistance to grain boundary corrosion. Among the uses of 316 steel, products with special requirements for resistance to grain boundary corrosion.

316L stainless steel is not resistant to hydrochloric acid, because the chloride ion in hydrochloric acid will chemically react with the town in 316, and the reaction changes slowly, but there is still a problem after a long time. If it is convenient to use in the chemical industry, it is not necessary to consider materials such as lining plastic.

You may like: Digital Flow Meters Guide| Liquid and Gas

Read More about Chemical Flow Meter Guide

Stainless steel turbine flow meter

Turbine flow meters are velocity flow meters, also called impeller flow meters. Can be used to measure the instantaneous flow and cumulative flow of liquids and gases.

Turbine flowmeters are widely used in flow measurement: petroleum, organic liquids, inorganic liquids, liquefied gas, natural gas, coal gas, and cryogenic fluids. Turbine flowmeter signals can be divided into pulse signals or current signals (4-20mA). It is suitable for use with secondary display, PLC, DCS, and other computer control systems.

Read more about Liquid Flow Meters Guide

Instrument material

304 stainless steel, 316 (L) stainless steel, etc.

Stainless steel mechanical flow meter

Volumetric Flow Meter, as a mechanical flow meter, is also called a Positive displacement flowmeter. It can measure the volume flow of high viscosity and corrosive fluids.

Volumetric Flow Meter is a mechanical instrument used to measure the volume flow of fluids. A volumetric flow meter is an instrument that can measure either directly or indirectly the volume of a substance that is passing through a specific location in a set period of time. The main advantage of these types of flow meters is that they can handle high viscosity and corrosiveness fluid.

Extended reading: Sanitary Positive Displacement Flow Meter

Stainless steel fuel flow meter

What is a fuel flow meter? The fuel flow meter is an instrument that can monitor fuel flow. Industrial Fuel is an important energy source. For example, diesel, marine fuel, gasoline, etc.

Industrial Fuel is an important energy source for production and manufacturing. For example, diesel, marine fuel, gasoline, etc. It is very necessary to accurately measure industrial fuel. Commonly used industrial fuel flow meters, such as turbine flow meters, gear flow meters, mass flow meters, ultrasonic flow meters, etc.

Beer/beverage flow meter

The beer Flow Meter is also called the brewery flow meter. For beverages such as beer and liquor, it is important to accurately measure and control their flow.

Digital Beer Flow Meters for Brewery-Wine flow measurement can be contact or non-contact. The contact type is also called a sanitary flowmeter. The non-contact type is mainly the external clamp type ultrasonic flowmeter. Next, we will analyze in detail.

Read more about Sanitary Flow Meters-316SS, Tri clamp-Pulse- for Brewery

Propane flow meter

A propane flow meter refers to a flow meter that can measure gaseous or liquid propane. Propane is also generally referred to as liquefied petroleum gas (LPG)).

Propane is usually gaseous, but it is usually transported after being compressed into a liquid state. After crude oil or natural gas is processed, propane can be obtained from refined oil. Propane is often used as a fuel for engines, grilled food, and household heating systems.

Tri-clamp flow meter

Common sanitary flow meters are sanitary magnetic flow meters and sanitary turbine flow meters. Composed of 304/316 stainless steel. A Sanitary flowmeter with Tri-Clamp fittings is easier to install and disassemble. Suitable for the food hygiene industry.

The sanitary flowmeter uses a new sanitary lining material and lining technology. At the same time, a stainless steel casing and a stainless steel clamp connection are used to facilitate the quick disassembly and cleaning of the sanitary flowmeter. It is not easy to be polluted, and can effectively prevent the accumulation of measuring fluid residue in the measuring tube. It is used in the production process of mineral water, soy sauce, jam, beer, fruit juice, rice wine, milk, and other foods and in the fields of hygiene and chemical industry

Parts of Flow Meter

What is a flow meter?

A flow meter is an instrument used to measure the volume or mass of gas, steam, or liquid. Based on a specific industry, there are many different names for flow meters. Such as flow meters, flow indicators, liquid flow meters, flow sensors, etc.

Most flow meters consist of three parts: primary device, sensor, and transmitter. The job of the sensor is to sense the fluid passing through the main device. The raw signal from the sensor is then converted into usable data by the transmitter. The flow meter may consist of one or more physical devices because these components are combined most of the time.

You may like:

Sino-Inst, Manufacturer for Stainless steel flow meters. For example stainless steel turbine flow meter, oval gear flow meter, sanitary flowmeters.

Sino-Inst’s Stainless steel flow meters for Corrosive liquid or gas flow, made in China, Having good Quality, With better price. Our flow measurement instruments are widely used in China, India, Pakistan, the US, and other countries.

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

Oxygen Flow Meters are digital flow meters that can measure industrial oxygen. It is very important to choose a suitable flow meter to measure and monitor the oxygen flow.

Oxygen and hydrogen are special gases, so you must choose a suitable flow meter. Several commonly used flow meters that can measure oxygen are precession vortex flowmeters, vortex flowmeters, DP flowmeters and thermal gas mass flowmeters. The selection of oxygen flow meter must provide specific parameters, such as pipe diameter, working pressure, temperature, flow range, functional requirements and so on.

Featured Industrial Oxygen Flow Meters for Sale

Extended reading: Flow Totalizer F3000X for Data collection and calculation

Applications of industrial oxygen

Industrial oxygen generally only requires oxygen purity, and has no special requirements for other sanitary conditions. At the same time, it also contains excessive carbon monoxide, methane and other harmful gases, and the content of moisture, bacteria and dust is also high. Industrial oxygen is mainly used for welding and gas welding. , Gas cutting, etc.

Application of industrial gas oxygen

• Chemical industry: In the production of synthetic ammonia, oxygen is mainly used for the oxidation of raw gas to strengthen the process and increase the output of chemical fertilizers. Another example is the high-temperature cracking of heavy oil and the gasification of pulverized coal.
• National defense industry: Liquid oxygen is a good combustion-supporting agent for modern rockets. Liquid oxygen is also needed as an oxidant in supersonic aircraft. After being impregnated with liquid oxygen, combustible substances are highly explosive and can be used to make liquid oxygen explosives.
• Medical care: supply breathing: used in hypoxic, hypoxic, or anaerobic environment. For example diving operations, mountaineering, high-altitude flight, space navigation, medical rescue, etc.
• Other aspects: It is used as a combustion aid in combination with acetylene, propane, and other combustible gases to achieve the role of welding and cutting metals. It is widely used in various industries, especially in machinery enterprises. It is also very convenient for cutting and is the first choice A cutting method.

Guess you like: Gas Mass Flow Meter

Read more about: Industrial flow meters for Different industrial applications

Oxygen flow meters types

Several commonly used flow meters that can measure oxygen are vortex flow meters, target flow meters, differential pressure flow meters, metal tube float flow meters and thermal gas mass flow meters. Let’s pay attention to the analysis.

Vortex flowmeter measures oxygen:

It is not anti-vibration, has a high starting flow rate, and can measure large flow media. Oxygen is a small molecule gas. It cannot measure its offline flow during measurement. The flow range of the vortex street DN300 caliber is 4500～45000m3/h. (Read more about: Flow Unit Conversion Table) At the time of selection, this flowmeter cannot measure a flow rate of less than 4500 cubic meters per hour.

Read more about: How Vortex Flow Meter measure efficiently? For steam, gas, liquid

Precession Vortex Gas Flowmeter measures oxygen:

Precession Vortex Gas Flowmeter, like vortex flowmeter, is a velocity flowmeter. The cost performance of the intelligent precession vortex flowmeter is higher than vortex flowmeter. The intelligent precession vortex flowmeter can only measure gas.

Precession Vortex Gas Flowmeter can be made into an integrated temperature and pressure compensation. And can measure various gases. Such as compressed air, oxygen, biogas, natural gas, coal gas, etc.

Read More about: Inline gas flow meter

Target flow meter measures oxygen:

The main measurement medium of this flowmeter is high viscosity, many impurities, easy to block, high temperature, low temperature, and strong corrosion. Oxygen is a pure gas, a small molecule gas, and its flow rate is slow. The target flowmeter does not meet its measurement characteristics.

Differential pressure flow meters (Bar-type series flow meters, orifice plates, wedge types, nozzles, V cones, etc.) measure oxygen:

All of them belong to a kind of throttling device. When measuring, the pressure is taken through the pressure taking port, and then converted into a flow signal output by the transmitter. In the process of converting the flow signal, the transmitter is prone to zero drift, and the stability of the flow is difficult to guarantee.

The pressure loss is larger than other flow meters, and it is difficult to accurately measure under low pressure and low flow rate conditions. Easy to get dirty and easy to block, large maintenance, can be used for general process control.

When there is no interference on site, the accuracy is greater than 2.5%, and the installation of large pipe diameter is time-consuming and laborious.

Metal tube float flowmeter measures oxygen:

This flowmeter is a mechanical flowmeter designed to measure small flow gases, with a measurement accuracy of 2.5%. There is no advantage in measuring large pipe diameters, hydrogen, and oxygen.

The flow range of DN300: 600～6000m3/h. The upper limit of flow can only reach 6000 cubic meters per hour, which cannot meet the on-site flow. Large pipe diameters are expensive and troublesome to install.

Read more about: Rotameter flow meter-Variable Area Flow Meters. Suitable for liquid and gas volumetric flow measurement and control.

Extended Reading: Metal Tube Flow Meter Applications

Thermal gas mass flow meter measures oxygen:

The oil-free degreasing treatment has been done before leaving the factory to ensure the reliable usability of the flowmeter under working conditions.

Its range can be 400-10000m3/h, which can fully reach the required flow range. It comes with temperature and pressure compensation and high measurement accuracy. Good stability, simple installation, no special maintenance. It is a high-precision, maintenance-free gas flow meter.

Read more about: What is a Flow Meter? Types and how does it work?

You may like:

Sino-Instt offer over 10 Oxygen Flow Meters, with Best Price.

A wide variety of Oxygen Flow Meters options are available to you, such as free samples, paid samples.

Sino-Inst is Oxygen Flow Meters supplier, located in China. CO2 flow meters products are most popular in North America, Mid East, and Eastern Europe.

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

CO2 flow meters are instruments that can measure the flow of gaseous or liquid carbon dioxide. CO2 is a common industrial gas, and effective measurement is very important.

Carbon dioxide (CO2) is a colorless, odorless gas at room temperature and pressure. We often recommend precession vortex flowmeters, v-cone flowmeters, vortex flowmeters, gas turbine flowmeters, etc. Under different working conditions, we will choose different flow meters for customers.

CO2 gas flow meter

Vortex flow meters and gas turbine flow meters are the most commonly used carbon dioxide flow meters.

In addition to vortex and gas turbine flowmeters, we mainly recommend precessing vortex flowmeters to measure carbon dioxide.

Precession vortex flowmeter is a new type of gas flowmeter. It can be used for the measurement of natural gas, propane, air, nitrogen, and other gases.

Precession Vortex Gas Flowmeter, like a vortex flowmeter, is a velocity flowmeter. The cost performance of the intelligent precession vortex flowmeter is higher than the vortex flowmeter. The intelligent precession vortex flowmeter can only measure gas. Precession Vortex Gas Flowmeter can be made into an integrated temperature and pressure compensation. And can measure various gases. Such as compressed air, oxygen, biogas, natural gas, coal gas, etc.

Precession Vortex Gas Flowmeter reference price: DN50, USD 600.00/pc.

Read more about: How Vortex Flow Meter measure efficiently? For steam, gas, liquid

CO2 mass flow meter

The thermal gas flow meter is a flow meter that only measures gas! There are two types of installation, plug-in type, and pipeline type, and the maximum temperature of the medium can reach 300°C. And it has high precision and good stability. Measuring carbon dioxide couldn’t be better.

• Measure gas mass flow without temperature and pressure compensation.
• The range ratio is large, and the measuring flow rate range: 0.1Nm/s～120Nm/s.
• No pressure loss, suitable for pipes of any shape with the known cross-sectional area.
• Corrosion-resistant sensor, suitable for measuring corrosive gases.
• The plug-in sensor can be installed and maintained online.
• The expert algorithm in the full range ensures the accuracy of the measurement. Suitable for trade settlement or gas leak detection.

Tool: Volumetric Flow Rate & Pipe Diameter to Flow Speed Calculator

A thermal gas mass flow meter is a new type of flow meter that can conveniently and accurately detect the mass flow of various gases flowing in the pipeline without temperature and pressure compensation.

It can be widely used in gas process control and gas flow measurement.
The mass flow of natural gas, air, hydrogen, oxygen, chlorine, helium, argon, ammonia, biogas, coal gas, flue gas, and (except acetylene gas) flowing in the pipeline.

Guess you like: Gas Mass Flow Meter

Liquid CO2 flow meter

Liquid carbon dioxide refers to the liquefaction of carbon dioxide gas into liquid form under high pressure and low temperature. Liquid carbon dioxide is a refrigerant that can be used to preserve food and can also be used for artificial rainfall.

According to the situation of night talk about carbon dioxide, we can choose a suitable flow meter.

For example, in low temperature conditions, we can choose Low temperature Turbine Flowmeter.

In other cases, a V-cone flowmeter can also be used for measurement.

Gas mass flow controller

The gas mass flow controller is based on the principle of thermal mass flow measurement. With control valve. The Micro Gas Flow Controller (MFC) is used to precisely measure and control the mass flow of gas.

Read More

Read more about: Industrial flow meters for Different industrial applications

Featured CO2 flow meters for Sale

You may like:

Extended reading:
What is the K-factor in a flow meter?
Cryogenic Flow Meters|Liquid Nitrogen-Liquid Oxygen-LNG fluids

CO2 flow meter price

Sino-Instt offer over 10 CO2 flow meters, with Best Price.

A wide variety of CO2 flow meters options are available to you, such as free samples, paid samples. All of our flow meters can wokrk with the AMS NEW TREX.

Sino-Inst is CO2 flow meters suppliers, located in China. CO2 flow meters products are most popular in North America, Mid East, and Eastern Europe.

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

Biogas Flow Meters are instruments that can measure the flow of biogas. Could be a vortex flow meter, thermal mass flow meter, etc. Commonly used in biogas stations, biogas production fermentation tanks, etc.

Biogas Flow Meters measure the flow of biogas in the production and use process.
At present, several biogas flow measurement technologies have been widely used in the biogas field, including turbine flow meters, vortex flow meters, orifice flow meters, ultrasonic gas flow meters, etc.

renewable energy source-biogas

At present, the use of biogas is mainly concentrated in three major fields: rural areas, aquaculture, and industry.

Utilization of rural biogas
The comprehensive utilization of rural biogas can effectively solve the problem of living energy for farmers. The existing plant straw and animal manure in rural areas are used as raw materials. Use facilities such as biogas digesters to produce biogas after long-term fermentation. Provide farmers with gas, lighting, organic fertilizers.

Utilization of biogas in aquaculture
Livestock and poultry manure is put into the biogas project to produce biogas after fermentation. After the manure is fermented, it can be directly used as crop fertilizer, fish farming, pig feeding, seed soaking, etc. Promote the integration of agricultural planting and breeding. The main utilization methods are as follows: First, to provide gas for surrounding residents. The second is to provide electricity for the farm through power generation, and the remaining electricity will be connected to the grid.

Utilization of biogas in industry
The utilization of biogas in the industrial field is mainly concentrated in papermaking, brewing, food processing, sewage treatment and other industries. Industrial waste is used as raw material for fermentation to produce biogas. Mainly power generation and heat supply. Biogas can be used for internal combustion engine power generation, combustion support of large coal-fired boilers or to replace raw coal. Use small boilers to produce steam, etc.

Featured Biogas Flow Meters

Purpose of biogas flow measurement

In the process of biogas production and use, it needs to be flow metered. The main purposes are as follows:

• Provide reference data for biogas station. The purpose of installing flow meters in biogas supply stations is to provide basic data for the scheduling and control of biogas.
• Check the efficiency of fermentation tanks or landfills. Know the efficiency of the fermentation tank through the biogas flow. If the flow fluctuates unexpectedly, you can check the status of the fermentation tank in time.
• Control the combustion efficiency of the boiler. When a biogas boiler is burning, it is necessary to understand the flow of biogas to control the ventilation of the boiler. Excessive ventilation will reduce the furnace temperature. The ventilation rate is too low and the gas cannot be fully burned, causing waste and pollution.
• Control greenhouse gas emissions. Both CH4 and CO2 in biogas are greenhouse gases. Among them, CH4 is a greenhouse gas that is more harmful than CO2.
• Charges for civil biogas metering. Civil users install flow meters mainly for metering charges, and the management department conducts cost accounting.

Difficulties in biogas measurement

Biogas is a kind of gas that is very difficult to measure. It has the following characteristics:

• Very low pressure: the original biogas from the fermentation tank usually does not exceed 0.1 kg (10kPa).
• Composition changes: Biogas is composed of a variety of mixed gases. The composition of the biogas produced will fluctuate greatly depending on the raw materials for gas production.
• Large flow fluctuations: With changes in biogas raw materials, bacteria conditions, temperature fluctuations, etc., the output biogas flow rate will also vary greatly, so the flowmeter is required to have a larger turndown ratio.
• Water vapor: Biogas is produced by the fermentation of biomass, and the water in the biomass will be carried into the biogas. Therefore, the biogas usually contains saturated water vapor.
• Corrosive: Biogas usually contains H2S, although the content is low. But H2S will form corrosive hydrosulfuric acid after encountering water vapor. There is a greater potential for corrosion of metering components.

Extended reading: V-Cone Flow Meter Working Principle

Types of biogas flow meters

At present, several biogas flow measurement technologies have been widely used in the field of biogas. Mainly include turbine flowmeter, vortex flowmeter, orifice flowmeter, ultrasonic gas flowmeter, etc.

However, due to the characteristics of low biogas pressure, large changes in biogas component flow, strong corrosiveness, and viscous impurities. These flow measurement technologies also have some application problems, which bring troubles to the stability of flow measurement and daily maintenance.

Vortex flow meter to measure biogas

The vortex flowmeter is a volume flowmeter that measures the volume flow of gas, steam or liquid, the volume flow of standard conditions or the mass flow of gas, steam or liquid based on the Karman vortex principle. When the fluid flows through the dust collector rod of the vortex flowmeter, a vortex is formed. The frequency of vortex shedding is proportional to the fluid velocity. Temperature and pressure compensation can be configured.

Read more about: How Vortex Flow Meter measure efficiently? For steam, gas, liquid

Precession vortex flowmeter to measure biogas

Precession Vortex Gas Flowmeter, like vortex flowmeter, is a velocity flowmeter. The cost performance of the intelligent precession vortex flowmeter is higher than vortex flowmeter. The intelligent precession vortex flowmeter can only measure gas. Precession Vortex Gas Flowmeter can be made into an integrated temperature and pressure compensation. And can measure various gases. Such as compressed air, oxygen, biogas, natural gas, coal gas, etc.

Precession Vortex Gas Flowmeter reference price: DN50, USD 600.00/pc.

Guess you like: Industrial oxygen flow meter Flow Measurement of Nitrogen

Thermal mass flow meter to measure biogas

Thermal Mass Flow Meter is a true mass flow meter. No temperature and pressure compensation is required. Thermal gas mass flow meters are designed based on the principle of thermal diffusion. Including natural gas, coal gas, liquefied gas, flare gas, argon, carbon dioxide and other mixed gas flow measurement.

Gas turbine flowmeter to measure biogas

The gas turbine flowmeter integrates temperature, pressure, flow sensors and intelligent flow totalizers. The gas turbine flowmeter has high accuracy and good repeatability, so it is suitable for trade measurement and industrial process detection. It is widely used in many kinds of gas in petroleum, chemical, metallurgy, aviation, scientific research and other sectors and industrial fields. Such as natural gas, city gas, propane, butane, air, nitrogen and other gases measurement.

Gas Turbine Flow Meter reference price: USD900-2500/pc

Differential pressure flow meter to measure biogas

Differential Pressure Flow Meter is also called DP flow meter. Differential pressure flow meters use the principle of differential pressure to measure the flow of liquid, gas and steam.

The measurement of biogas flow is currently a big problem. But the advent of the differential pressure flowmeter completely broke the traditional flow measurement. V-cone flowmeters, balanced flowmeters, and orifice flowmeters are typical for measuring biogas flow. Both can easily solve the problem of biogas flow measurement, with measurement accuracy and good stability.

Extended reading: [Working principle&Price]SI3051ANB Annubar Flow Meter

Biogas flow meter price

Biogas flow meter price varies according to different flow meter technologies, flow meter size and functions.

Generally speaking, vortex flowmeters are preferred to measure biogas flow. Because the technology is mature and the cost is low.
Vortex flow meter for biogas flow meter price starts from $230. Welcome to send your flow meter size to us obtain the low price cost for biogas flow measurement.

Extended reading: Featured Cheap flow meters for Sale

More Gas Flow Measurement Solutions

Sino-Inst, Manufacuturer for Biogas Flow Meters Including Orifice plate, Venturi, Annubar, etc.

Could be a vortex flow meter, thermal mass flow meter, etc. Commonly used in biogas stations, biogas production fermentation tanks, etc.

Sino-Inst’s Biogas Flow Meters, made in China, Having good Quality, With better price. Our flow measurement instruments are widely used in China, India, Pakistan, US, and other countries.

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com
