803 non contact rotary torque sensor is a non-contact high-speed rotary sensor. Also known as torque speed sensor. Due to their high measurement quality and low linearity error, the sensor has always been an advantage in torque measurement products. 803 non contact rotary torque sensor adopts non-contact design. Since there are no wearing parts, it is very suitable for long-term rotation torque measurement and high-speed rotation torque measurement environment. Whether you are testing systems on the production line or on a test bench or on a pilot machine, the 803 torque sensor is a great choice.
Features of 803 Non Contact Rotary Torque Sensor
- The axial dimension is short. It is suitable for occasions with short axial distance.
- Turn on the machine for 5 minutes to enter the working state. No warm-up process is required.
- High detection accuracy, good stability and strong anti-interference.
- No need for repeated zero adjustment. Continuously measure forward and reverse torque.
- The static torque can be measured. Dynamic torque can also be measured.
- Small size, the sensor can be used independently from the secondary instrument. Directly output frequency signal or analog quantity proportional to torque.
- Measuring range: 0—10000N.m standard optional. Non-standard special ranges can be customized.
Technical Parameters
| Specification | Parameter specification |
| Range | 2N.m, 5N.m, 10N.m, 20N.m, 50N.m, 100N.m, 200N.m, 300N.m, 500N.m, 1KN.m, 2KN.m, 3KN.m, 5KN.m, 10KN.m, 20KN.m, 30KN.m, 40KN.m, 60KN.m, 100KN.m (optional) |
| Power supply | ±15VDC , 12- 24VDC |
| Torque signal | 5～15Khz（amplitude 12V,zero point 10kHz）、4～20mA、1～5V、0-10V（Optional) |
| Rotational speed range | 0～1000、3000、6000、8000rpm |
| Speed signal | Standard products do not come with rotational speed measurement, if with rotational speed measurement, specify when ordering |
| Accuracy | ±0.1%FS, ±0.25%, ±0.5% |
| Annual stability | 0.25%/year |
| Insulation resistance | ≥2000MΩ(100VDC) |
| Ambient Temperature | -20～70℃（Customizable high temperature type -20～120℃) |
| Relative Humidity | 0～90%RH |
| Overload capacity | 120%~150%FS |
| Frequency Response | 1ms |
| Repeatability | ±0.1% FS |
| Non-linear | ±0.1% FS |
| Zero point temperature drift | ±0.2% FS |
| Rated Speed | 8000rpm (60 pulse/RPM) 803G type rated speed: 18000rpm |
Dimensions
| Model (N.M) | Φ d | Φ D2 | A | B | C | E | F | G | H | H1 | C1 | E2 | L | keys b*h*l*n |
| 5 | 18 | 78 | 8 | 72 | 122 | 31 | 61 | 100 | 54 | 116 | 90 | 50 | 188 | 6x6x25x1 |
| 10 | 18 | 78 | 8 | 72 | 122 | 31 | 61 | 100 | 54 | 116 | 90 | 50 | 188 | 6x6x25x1 |
| 20 | 18 | 78 | 8 | 72 | 122 | 31 | 61 | 100 | 54 | 116 | 90 | 50 | 188 | 6x6x25x1 |
| 30 | 18 | 78 | 8 | 72 | 122 | 31 | 61 | 100 | 54 | 116 | 90 | 50 | 188 | 6x6x25x1 |
| 50 | 18 | 78 | 8 | 72 | 122 | 31 | 61 | 100 | 54 | 116 | 90 | 50 | 188 | 6x6x25x1 |
| 100 | 18 | 78 | 8 | 72 | 122 | 31 | 61 | 100 | 54 | 116 | 90 | 50 | 188 | 6x6x25x1 |
| 200 | 28 | 92 | 8 | 72 | 123 | 41 | 61 | 100 | 60 | 125 | 90 | 59 | 209 | 8x7x35x1 |
| 500 | 38 | 96 | 8 | 72 | 124 | 55 | 61 | 100 | 65 | 135 | 90 | 74 | 238 | 10x8x50x2 |
| 1k-2k | 48 | 106 | 12 | 69 | 126 | 70 | 78 | 120 | 68 | 144 | 90 | 90 | 270 | 14x9x65x2 |
| 3000 | 55 | 118 | 12 | 65 | 127 | 88 | 115 | 155 | 77 | 170 | 90 | 123 | 311 | 16x10x80x2 |
| 5000 | 75 | 144 | 12 | 69 | 131 | 105 | 156 | 180 | 90 | 185 | 100 | 139 | 347 | 20x14x95x2 |
| 10000 | 98 | 158 | 14 | 80 | 143 | 118 | 170 | 200 | 110 | 214 | 110 | 155 | 389 | 28x16x115x2 |
| 20k-30k | 105 | 170 | 14 | 87 | 160 | 125 | 180 | 204 | 115 | 236 | 123 | 165 | 420 | 28x16x119x2 |
| 50k-60k | 150 | 240 | 14 | 89 | 163 | 123 | 184 | 230 | 153 | 309 | 123 | 165 | 419 | 40x22x115x2 |
| 100k | 170 | 270 | 16 | 95 | 188 | 200 | 194 | 240 | 169 | 340 | 140 | 252 | 598 | 45x25x195x2 |
Learn more about the 803 Non Contact Rotary Torque Sensor
803 series torque sensor is a precision measuring instrument for measuring various torque, rotational speed and mechanical power. Wide range of applications. Mainly used for:
- Detection of output torque and power of rotating power equipment such as electric motors, engines, and internal combustion engines;
- Detection of torque and power of fans, water pumps, gearboxes, and torque wrenches;
- Detection of torque and power in railway locomotives, automobiles, tractors, airplanes, ships, and mining machinery;
- It can be used for the detection of torque and power in the sewage treatment system;
- Can be used to manufacture viscometers;
- Can be used in process industry and process industry.
Measurement of torque:
Using strain gauge electrical measurement technology. A strain bridge is formed on the elastic shaft, and the electric signal of the elastic shaft being twisted can be measured by supplying power to the strain bridge.

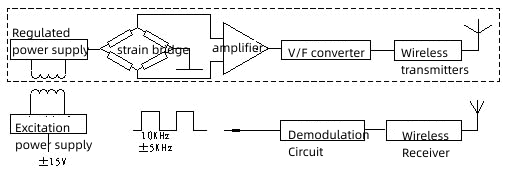

After the strain signal is amplified, it undergoes pressure/frequency conversion. becomes a frequency signal proportional to the torsional strain. as the picture shows:
Measurement of rotational speed:
The rotational speed is measured by the method of magnetoelectric code disc. Each magnetoelectric disc has 60 teeth. The shaft drives the magnetoelectric code disc to generate 60 pulses per revolution. The accuracy of the speed sensor can reach ±0.1%～±0.5% (F•S).
The speed measurement method of this sensor adopts built-in speed measurement, please indicate whether to monitor the speed signal when ordering!
Read more about: Torque Transducer Measurement Principle
The selection of the torque sensor range should be based on the actual maximum torque measured. Usually there should be some margin. Prevent damage to the sensor due to overloading.
Calculation formula: M=9550×P/N
M: Torque Unit: N.m
P: Motor power unit: KW
N: Speed Unit: r/min
If the motor you are using is a three-phase induction motor. Due to the large instantaneous torque of the motor starting. It is recommended that the torque range should be selected to be 2-3 times the rated torque.
According to the connection form of the shaft and the length of the torque sensor, determine the distance between the prime mover and the load, adjust the distance between the axes of the prime mover and the load relative to the reference plane, so that the coaxiality of their axes is less than Φ0.03mm, and fix the original Motives and loads are on the datum plane.
Install the couplings on their respective shafts.
Adjust the distance between the torque sensor and the reference plane so that the coaxiality between its axis and the axis of the prime mover and the load is less than Φ0.03mm, and fix the torque sensor on the reference plane.
Tighten the coupling and the installation is complete.
A torque sensor is a force measuring device and torque measuring tool. It converts a torque measurement (static, dynamic or rotational) into another physical variable. In this case, into an electrical signal that can be measured, transformed and normalized. As the torque applied to the torque sensor increases, the electrical output signal changes proportionally.
Classification of torque sensors:
Dynamic Torque Transducers / Rotational Torque Transducers
Dynamic torque sensors/rotating torque sensors are used in applications where torque measurement must be performed on rotating shafts, engines or stationary electric machines. In this case, the transducer must rotate on a straight line connected to the shaft. Dynamic torque sensors are equipped with slip rings or wireless electronics that transmit torque signals while rotating (non-contact sensors).
Dynamic torque sensors/rotational torque sensors are often used as test tools for electric motors, torque measurement tools, turbines and generators to measure rotational torque. Shaft-to-shaft rotational torque sensors can also be used for feedback control, monitoring torque, analyzing test bench efficiency, and using strain gauges for torque measurements on rotating shafts.
The dynamic torque sensor/rotation torque sensor is also an important part of the dynamometer. Because it provides torque measurement and angular velocity (RPM), it can easily calculate the output power. So it can accurately calculate the electromechanical efficiency of the motor or engine.
Static torque sensor
In some applications, a static torque sensor can be used to measure the torque measurement made by an in-line rotary sensor (static torque measurement) at the point where the torque is transmitted to the ground.
A reaction torque meter has two mounting flanges (flange-to-flange transducers). One face is fixed to the ground or rigid structural member. The other face is fixed to the rotating shaft or rotating element. Rotation creates a shear force between the flanges. This shear force is captured by foil strain gages attached to the sensor beam. It is converted into electrical current through a Wheatstone bridge.
For a given application, static torque sensors (aka torque sensors) are generally not as sophisticated as rotary sensors. So less expensive than rotary sensors. Static torque transducers are often used as torque calibration tools or torque wrench calibration tools. Static torque sensors can also be used as miniature electric torque screwdrivers, allowing engineers to obtain torque feedback in real-time, or to study the torque applied during assembly.
Non contact torque sensor input shaft and output shaft are connected by torsion bar. There are splines on the input shaft and keyways on the output shaft.
When the torsion bar is twisted by the turning moment of the steering wheel, the relative position between the splines on the input shaft and the keyway on the output shaft is changed.
The relative displacement change of the spline and the keyway is equal to the torsion of the torsion rod, which makes the magnetic induction on the spline change. The change of the magnetic induction is converted into a voltage signal through the coil.
The high frequency part of the signal is filtered by the detection circuit and only the torque signal part is amplified.
Due to the non-contact working method, the non-contact torque sensor has a long life and high reliability. It is not easily affected by wear, has a smaller delay, and is less affected by the deflection of the shaft and axial offset. It has become widely used. Mainstream products of the application.
Read more about: How does a non contact torque sensor work?
If you cannot find an answer to your question in our 803 Non Contact Rotary Torque Sensor, you can always contact us
and we will be with you shortly.
More Featured Torque Sensors For Sale
Sino-Inst is a manufacturer of 803 Non Contact Rotary Torque Sensor-100KN.m-Non-Contact. We offer more than 20 types of Non Contact Rotary Torque Sensors. Non Contact Rotary Torque Sensors can measure a variety of different mechanical power, rotational speed and torque measuring devices.
Non Contact Rotary Torque Sensor is also called rotary torque sensor, torque transducer. Mainly used for torque measurement in dynamic situations. The Non Contact Rotary Torque Sensor is equipped with a speed measuring device, which can measure the rotational speed while measuring the torque. At this time, the Non Contact Torque Sensor can also be called a torque speed sensor.
Sino-Inst’s Non Contact Rotary Torque Sensor, made in China, have good quality, with better prices. Our Non Contact Rotary Torque Sensors are widely used in China, India, Pakistan, USA and other countries.
Sino-Inst’s entire team is well trained, so we can ensure that each customer’s needs are met. If you need any help with your product requirements, whether it is a Non Contact Rotary Torque Sensor, level sensors, or other equipment, please give us a call .
Request a Quote
