B-F flare gas ultrasonic flowmeter adopts all-metal ultrasonic transducer. It is suitable for measurement in a variety of harsh environments. The turndown ratio is large. It can measure hydrocarbon gas, exhaust gas and other gas containing impurities and humidity.

Features of B-F Flare Gas Ultrasonic Flow Meter

• Large turndown ratio and wide flow velocity measurement range;
• Suitable for multi-component metering. The gas flow meter is not affected by changes in composition.
• Suitable for gas flow measurement with rapid changes in composition.
• Measuring velocity and volume flow;
• It can measure pulsating flow and can measure in both directions;
• Measuring hydrocarbon gas;
• Suitable for gas containing impurities, damp and dirty, corrosion resistance.
• No routine maintenance is required.
• It can be installed and maintained online.

1. Wide range ratio, wide applicable flow range. Can detect small leaks.
2. The gas flow rate in the flare system is complex and changeable, and the gas composition is often a mixture of multiple different gas sources. The measured fluid has the characteristics of complex and changeable composition, obvious pressure and temperature fluctuation, and wide flow range. Using B-F to measure this type of fluid is excellent.
3. The B-F flowmeter has no moving parts. The probe is made of all metal material. Can withstand the corrosive environment of flare gas. Stable and durable. Low maintenance.

B-F Ultrasonic Gas Flow Meter Technical specifications

B-F Ultrasonic Gas Flow Meter Installation

More Features Gas Flow Meters

Sino-Inst’s Flare Gas Ultrasonic Flow Meter offer reliable and accurate volume flow measurement in a large range of sizes and pressure rating while being fully compliant with international standards.

Sino-Inst is the risk-free choice for your gas flow measurement applications.

Sino-Inst’s Flare Gas Ultrasonic Flow Meter, made in China, Having good Quality, With better price. Our flow measurement instruments are widely used in China, India, Pakistan, US, and other countries.

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

B-D Ultrasonic Gas Flow Meter is a pipe section flowmeter. Use mono mode. The sound channel design of the ultrasonic transducer takes into account the requirements of various working conditions. Match the rectifier of corresponding caliber. It can be used for high-precision measurement of pipe sections smaller than DN200.

Features of B-D Ultrasonic Gas Flow Meter

• Overall explosion-proof design;
• No moving parts, no pressure loss, reducing use and maintenance costs;
• The starting flow rate is small. Suitable for measuring low-speed flow;
• Large turndown ratio, turndown ratio 1:125, measuring flow rate from 0.2-25m/s;
• The metering is not affected by the composition. Suitable for measuring multi-component gases or gases with changes in composition;
• The influence of dust and moisture is small. Dirty gases such as coal gas and flue gas can be measured;
• Proprietary algorithm, which can adapt to the measurement occasions with rapid changes in components, rapid changes in temperature, pressure, and humidity;
• Can measure pulsating flow and bidirectional flow;

1. Unique operating software design combines waveform debugging and parameter setting. Convenient on-site operation and maintenance;
2. Unique maintenance alarm can realize early warning of maintenance time. Provide product stability.
3. The all-metal ultrasonic transducer has strong anti-interference ability, dirt resistance and long service life.

B-D Ultrasonic Gas Flow Meter Applications

• It is suitable for the measurement of alkanes such as natural gas, coal bed methane, mine gas, liquefied petroleum gas, methane, ethane, propane, butane, etc.;
• It is suitable for the measurement of gas such as biogas, biological fermentation gas (water-containing impurities), and biomass fuel gas;
• Suitable for the measurement of air, oxygen, nitrogen, argon, helium, nitrogen, and other non-corrosive gases;
• It is suitable for the measurement of flare gas, tail gas, landfill gas, and water treatment aeration;
• It is suitable for the measurement of helium, ammonia, acetylene, and other gases;

💡Industrial Propane Tank Level Indicators for Industrial Tank Level Measurement

B-D Ultrasonic Gas Flow Meter Technical specifications

B-D Ultrasonic Gas Flow Meter Flow Range

B-D Ultrasonic Gas Flow Meter Straight pipe requirements

a) When there is no rectifier. It is recommended that the length of the front straight pipe is greater than 10D. The length of the rear straight pipe is greater than 5D.

b) With a rectifier. It is recommended that the length of the front straight pipe section is greater than 5D. The length of the rear straight pipe section is greater than 3D.

c) When there are noise sources such as pressure regulating valves on site. A noise reduction pipe section should be installed between the flowmeter and the noise source.

Precession Vortex Gas Flowmeter, like vortex flowmeter, is a velocity flowmeter. The cost performance of the intelligent precession vortex flowmeter is higher than vortex flowmeter. The intelligent precession vortex flowmeter can only measure gas. Precession Vortex Gas Flowmeter can be made into an integrated temperature and pressure compensation. And can measure various gases. Such as compressed air, oxygen, biogas, natural gas, coal gas, etc.

Sino-Inst’s Ultrasonic Gas Flow Meter offer reliable and accurate volume flow measurement in a large range of sizes and pressure rating while being fully compliant with international standards.

Sino-Inst is the risk-free choice for your gas flow measurement applications.

Sino-Inst’s Ultrasonic Gas Flow Meter, made in China, Having good Quality, With better price. Our flow measurement instruments are widely used in China, India, Pakistan, US, and other countries.

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

The B series Ultrasonic Gas Flow Meter adopts the principle of ultrasonic time difference.

Ultrasonic Gas Flow Meter uses the superposition relationship between the propagation velocity of the ultrasonic signal in the fluid and the fluid velocity for measurement. Ultrasonic Gas Flow Meter-B series is mainly for gases with a single composition such as oxygen, nitrogen, argon, helium, etc. There are also gases such as flare gas and natural gas. The price/performance ratio is very high.

Features of Ultrasonic Gas Flow Meter – B series

• Wide measuring range, 1:150
• 1% higher measurement accuracy
• Two-way metering
• No pressure loss
• No start flow
• Maintenance-free, less maintenance
• Intelligent integration

Ultrasonic Gas Flow Meter – B series Model

Example: B-FS600C represents B flare gas flow meter. Measuring pipe section DN600. Measuring C gas.

According to the application scenario. B series gas ultrasonic flow meters are divided into B-D type and B-F type.

Rectifier

The Z series rectifier can effectively improve the upstream and downstream measurement conditions of the gas ultrasonic flowmeter. Improve the accuracy of the measurement structure. The Z series rectifier adopts a tube segment honeycomb rectifier. It is connected with the flow meter and the pipe section through a flange. The rectifier plate is made of stainless steel. The meter head is made of stainless steel or cast steel.

Guess you like: Industrial oxygen flow meter Flow Measurement of Nitrogen

Influence of rectifier on straight pipe section

Sino-Inst’s Ultrasonic Gas Flow Meter offer reliable and accurate volume flow measurement in a large range of sizes and pressure rating while being fully compliant with international standards.

Sino-Inst is the risk-free choice for your gas flow measurement applications.

Sino-Inst’s Ultrasonic Gas Flow Meter, made in China, Having good Quality, With better price. Our flow measurement instruments are widely used in China, India, Pakistan, US, and other countries.

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

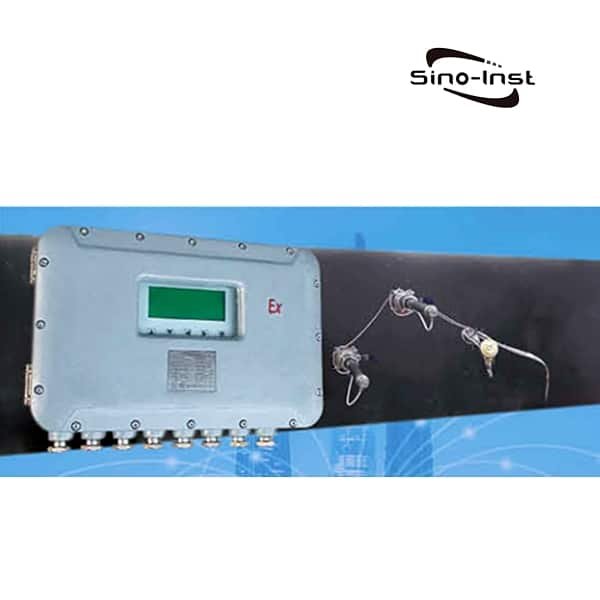

A-J is a plug-in gas ultrasonic flowmeter on the same side. Use single or dual channel mode. The sound channel design of the ultrasonic transducer takes into account the requirements of various working conditions. It is suitable for measurement in a variety of harsh environments. Suitable for low flow rate measurement. Suitable for low-frequency pulsating flow measurement.

A-J Ultrasonic Gas Flow Meter Applications

• Gas (coke oven gas, blast furnace gas, converter gas, producer gas, blue coal gas) and other gases measurement;
• Gas measurement of biogas, bio-fermentation gas, biomass gas, landfill gas, aeration of water treatment plants, etc.;
• Measurement of exhaust gases such as flare gas, flue gas, exhaust gas, exhaust gas, tail gas, etc.;
• Measurement of non-corrosive gases such as air, oxygen, nitrogen, argon, helium, etc.;
• Metering of chemical gases such as ammonia;

A-J Ultrasonic Gas Flow Meter Flow Range

Read more about: Benefits Of Digital Gas Mass Flow Meters

A-J Ultrasonic Gas Flow Meter Technical specifications

A-J Ultrasonic Gas Flow Meter installation location

The vortex flowmeter is a volume flowmeter that measures the volume flow of gas, steam or liquid, the volume flow of standard conditions or the mass flow of gas, steam or liquid based on the Karman vortex principle. When the fluid flows through the dust collector rod of the vortex flowmeter, a vortex is formed. The frequency of vortex shedding is proportional to the fluid velocity. Temperature and pressure compensation can be configured.

Sino-Inst’s Ultrasonic Gas Flow Meter offer reliable and accurate volume flow measurement in a large range of sizes and pressure rating while being fully compliant with international standards.

Sino-Inst is the risk-free choice for your gas flow measurement applications.

Sino-Inst’s Ultrasonic Gas Flow Meter, made in China, Having good Quality, With better price. Our flow measurement instruments are widely used in China, India, Pakistan, US, and other countries.

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

A-C Plug-in gas ultrasonic flowmeters on both sides, using single or dual channel mode. The sound channel design of the ultrasonic transducer takes into account the requirements of various working conditions. It is suitable for measurement in a variety of harsh environments. Suitable for low flow rate measurement. Suitable for low-frequency pulsating flow measurement.

A-C Ultrasonic Gas Flow Meter application

• Gas (coke oven gas, blast furnace gas, converter gas) and other gases measurement;
• Gas measurement of biogas, bio-fermentation gas, biomass gas, landfill gas, aeration of water treatment plants, etc.;
• Measurement of exhaust gases such as flare gas, flue gas, exhaust gas, exhaust gas, tail gas, etc.;
• Measurement of non-corrosive gases such as air, oxygen, nitrogen, argon, helium, etc.;
• Metering of chemical gases such as ammonia;

A-C Ultrasonic Gas Flow Meter Flow Range

A-C Ultrasonic Gas Flow Meter Technical specifications

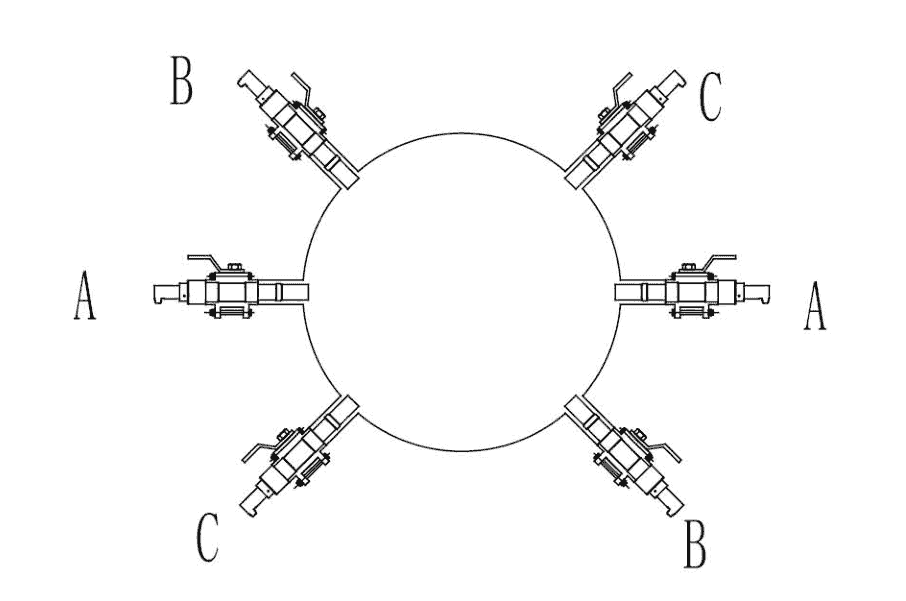

A-C Ultrasonic Gas Flow Meter installation location

The gas turbine flowmeter integrates temperature, pressure, flow sensors and intelligent flow totalizers. The gas turbine flowmeter has high accuracy and good repeatability, so it is suitable for trade measurement and industrial process detection. It is widely used in many kinds of gas in petroleum, chemical, metallurgy, aviation, scientific research and other sectors and industrial fields. Such as natural gas, city gas, propane, butane, air, nitrogen and other gases measurement.

Sino-Inst’s Ultrasonic Gas Flow Meter offer reliable and accurate volume flow measurement in a large range of sizes and pressure rating while being fully compliant with international standards.

Sino-Inst is the risk-free choice for your gas flow measurement applications.

Sino-Inst’s Ultrasonic Gas Flow Meter, made in China, Having good Quality, With better price. Our flow measurement instruments are widely used in China, India, Pakistan, US, and other countries.

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

A-S is a single-pole plug-in Ultrasonic Gas Flow Meter. Use single or dual channel mode. The sound channel design of the ultrasonic transducer takes into account the requirements of various working conditions. It is suitable for measurement in a variety of harsh environments. Suitable for low flow rate measurement. Suitable for low-frequency pulsating flow measurement.

A-S Ultrasonic Gas Flow Meter application

• Gas (coke oven gas, blast furnace gas, converter gas) and other gases measurement;
• Gas measurement of biogas, bio-fermentation gas, biomass gas, landfill gas, aeration of water treatment plants, etc.;
• Measurement of exhaust gases such as flare gas, flue gas, exhaust gas, exhaust gas, tail gas, etc.;
• Measurement of non-corrosive gases such as air, oxygen, nitrogen, argon, helium, etc.;
• Measurement of coal-bed methane, mine gas and other gases;

A-S Ultrasonic Gas Flow Meter Flow range

A-S Ultrasonic Gas Flow Meter Technical specifications

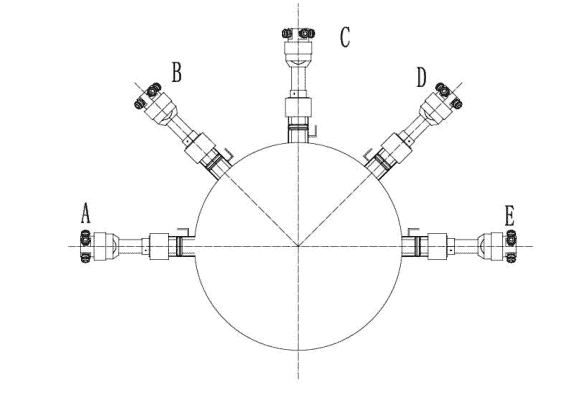

A-S Ultrasonic Gas Flow Meter Installation

A-S Ultrasonic Gas Flow Meter site platform construction diagram

The gas turbine flowmeter integrates temperature, pressure, flow sensors, and intelligent flow totalizers. The gas turbine flowmeter has high accuracy and good repeatability, so it is suitable for trade measurement and industrial process detection. It is widely used in many kinds of gas in petroleum, chemical, metallurgy, aviation, scientific research, and other sectors and industrial fields. Such as natural gas, city gas, propane, butane, air, nitrogen, and other gases measurement.

Sino-Inst’s Ultrasonic Gas Flow Meter offer reliable and accurate volume flow measurement in a large range of sizes and pressure rating while being fully compliant with international standards.

Sino-Inst is the risk-free choice for your gas flow measurement applications.

Sino-Inst’s Ultrasonic Gas Flow Meter, made in China, Having good Quality, With better price. Our flow measurement instruments are widely used in China, India, Pakistan, US, and other countries.

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

A-D Ultrasonic Gas Flow Meter is a pipe section type flow meter, using single or dual channel mode. The sound channel design of the ultrasonic transducer takes into account the requirements of various working conditions. It is suitable for measurement in a variety of harsh environments. Suitable for low flow rate measurement. Suitable for low-frequency pulsating flow measurement.

A-D Ultrasonic Gas Flow Meter application

• Gas (coke oven gas, blast furnace gas, converter gas, producer gas, blue coal gas) and other gases measurement;
• Gas measurement of biogas, bio-fermentation gas, biomass gas, landfill gas, aeration of water treatment plants, etc.;
• Measurement of exhaust gases such as flare gas, flue gas, exhaust gas, exhaust gas, tail gas, etc.;
• Measurement of non-corrosive gases such as air, oxygen, nitrogen, argon, helium, etc.;
• Metering of natural gas, liquefied petroleum gas, coal bed methane, oil and gas, mine gas, wellhead gas and other gases;
• Metering of chemical gases such as hydrogen, acetylene and ammonia;

A-D Ultrasonic Gas Flow Meter Flow range

A-D Ultrasonic Gas Flow Meter Technical specifications

Extended reading: Ultrasonic Insertion Flow Meter for Lined/Large Pipes

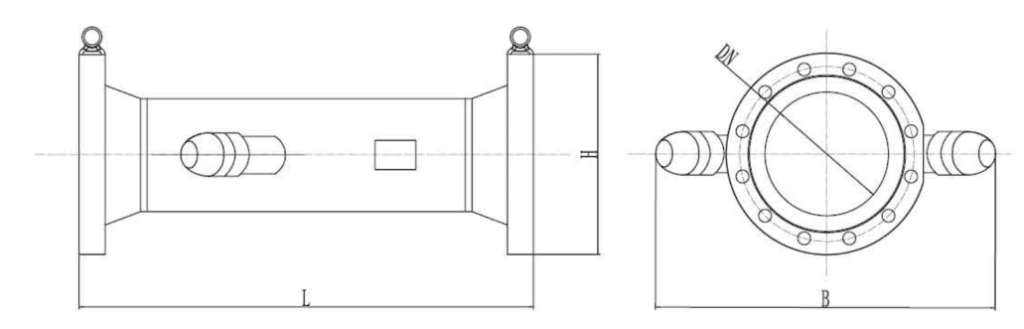

A-D Ultrasonic Gas Flow Meter pipe size

The gas turbine flowmeter integrates temperature, pressure, flow sensors and intelligent flow totalizers. The gas turbine flowmeter has high accuracy and good repeatability, so it is suitable for trade measurement and industrial process detection. It is widely used in many kinds of gas in petroleum, chemical, metallurgy, aviation, scientific research and other sectors and industrial fields. Such as natural gas, city gas, propane, butane, air, nitrogen and other gases measurement.

Sino-Inst’s Ultrasonic Gas Flow Meter offer reliable and accurate volume flow measurement in a large range of sizes and pressure rating while being fully compliant with international standards.

Sino-Inst is the risk-free choice for your gas flow measurement applications.

Sino-Inst’s Ultrasonic Gas Flow Meter, made in China, Having good Quality, With better price. Our flow measurement instruments are widely used in China, India, Pakistan, US, and other countries.

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

The A series Ultrasonic Gas Flow Meter solves the problem of gas measurement.

A series Ultrasonic Gas Flow Meter is a split flowmeter suitable for gas measurement under complicated working conditions. The gas ultrasonic flowmeter consists of a flowmeter host, a flowmeter body, an ultrasonic transducer, a pressure transmitter, a temperature transmitter, and installation accessories.

Features of Ultrasonic Gas Flow Meter – A series

• The measurement is not affected by the components, and the dust and moisture are small. Suitable for measuring multi-component gases or gases with changes in composition;
• The all-metal design of the transducer is highly reliable and resistant to dirt. It can measure dirty gases such as coal gas and flue gas, and has a long service life;
• Use professional digital signal processor. The running speed is fast and the algorithm reliability is high. The flow response is real-time, which can meet the gas measurement of complicated working conditions with rapid changes in temperature, pressure and humidity;
• The starting velocity is small, the starting velocity is 0.2 m/s. Suitable for measuring low-speed flow;
• Large turndown ratio, turndown ratio 60:1. Measuring flow rate from 0.5~30 m/s;
• Can measure pulsating flow and bidirectional flow;
• No moving parts, no pressure loss. Reduce use and maintenance costs;
• Support online non-stop gas installation and maintenance;
• Supports real-time waveform display and debugging, and the operation interface is menu-oriented, which is convenient for users to use;
• Support intelligent alarm, convenient for customer maintenance;
• Large measuring range, support DN50-DN5000 pipe section measurement

Guess You’ll Like: Ultrasonic flow meters types & technical guide

Model of Ultrasonic Gas Flow Meter – A series

Example: A-SS-600D represents the A series split single-rod plug-in installation flow meter, measuring pipe section DN600, and the medium used is Class D gas.

Ultrasonic Gas Flow Meter – A series Installation Precautions

• Do not install the flow meter host for outdoor use. When necessary, it should be installed in the instrument protection box. Avoid sun and rain.
• The main unit of the flow meter should be installed vertically on the bracket or on the wall. And do not install in places subject to strong vibration.
• The flowmeter host should avoid sharing an AC power supply with inverters, electric welders and other equipment.
• The housing of the flowmeter host must be grounded separately (grounding resistance <4Ω).
• The installation position of the transducer should be as far away as possible from the position that has a great influence on the fluid distribution. Such as: pump, elbow, tee, reducer, etc.
• The installation position of the transducer should be as far away as possible from the throttle or regulating valve.
• The installation location of the flow meter host and transducer should avoid the environment that can cause resonance of the signal processing unit, ultrasonic transducer and other components. And avoid environments where strong electromagnetic or electronic interference may exist.
• When installing, ensure a certain length of straight pipe section upstream and downstream. Usually requires 10D upstream and 5D downstream.
• Where there is a danger of lightning strikes, lightning arresters should be installed.
• When the distance between the flow transmitter and the ultrasonic probe is far, the direct connection with the flowmeter signal cable will cause signal attenuation and interference. So try to shorten the distance between the two. Generally required: the cable connection distance between the host and the probe is less than 10 meters.
• The signal cable connected between the flow transmitter and the ultrasonic probe should be isolated from the power line and avoid using the same casing.

Read more about: Industrial Gas Measurement with Digital Gas Mass Flow Meters

More Features Gas Flow Meters

Sino-Inst’s Ultrasonic Gas Flow Meter offer reliable and accurate volume flow measurement in a large range of sizes and pressure rating while being fully compliant with international standards.

Sino-Inst is the risk-free choice for your gas flow measurement applications.

Sino-Inst’s Ultrasonic Gas Flow Meter, made in China, Having good Quality, With better price. Our flow measurement instruments are widely used in China, India, Pakistan, US, and other countries.

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com

Ultrasonic Gas Flow Meter uses the principle of measuring the transit time of ultrasonic waves in the pipeline. Ultrasonic Gas Flow Meter is an ideal choice for various gas measurements.

The gas ultrasonic flowmeter is suitable for blast furnace gas, converter gas, coke oven gas, mixed gas, gas, compressed air, chlorine, nitrogen and other industrial gases. Suitable for large-caliber gas measurement, suitable for low flow rate, pulsating flow gas measurement. It has the advantages of not being affected by gas components, dirt resistance, fast response, wide range, high precision, good stability, and less maintenance.

Ultrasonic Gas Flow Meter Introduction

The ultrasonic gas flow meter is designed and manufactured according to the national standard GB/T-18604-2014 and the verification regulation JJG-1030-2007 using the principle of ultrasonic time difference method. Also refer to the US AGA8/AGA9/AGA10 report. Various performance indicators have reached the international advanced level of gas measurement.

Compared with traditional flow meters, gas ultrasonic flow meters have no pressure loss, strong anti-interference ability, wide range ratio, can measure small flow, can measure bidirectional flow and pulsating flow, and have the characteristics of being independent of gas composition. It is a new type of flow meter with excellent performance.

Features and advantages of Ultrasonic Gas Flow Meter

• Suitable for multi-component metering. Gas flow measurement is not affected by changes in composition.
• It can measure small flow and solve the problem of low flow gas measurement.
• Large turndown ratio meets the measurement requirements of high flow rate and low flow rate.
• Pulsating flow can be measured.
• It can be measured in both directions.
• Can measure dirty gas containing impurities and moisture;
• Corrosion resistant, can measure corrosive gas flow.
• It can be installed online and maintained online.

1. It adopts industrial design and the flowmeter has no moving parts. No pressure loss, reducing product use and maintenance costs.
2. It adopts all-metal transducer, which is resistant to dirt and corrosion. With a unique algorithm, it can ensure the gas flow measurement in the dirty medium.
3. Supports intelligent alarms such as pressure, temperature, flow, and ultrasonic signals. It can realize the early warning of the ultrasonic transducer before maintenance is required. Reduce maintenance frequency. Reduce maintenance costs.
4. Visual waveform display, menu-based instrument interface. It is convenient to use and debug the instrument.

Ultrasonic Gas Flow Meter Applications

• Gas (coke oven gas, blast furnace gas, converter gas, producer gas, blue coal gas) and other gases measurement;
• Gas measurement of biogas, bio-fermentation gas, biomass gas, landfill gas, aeration of water treatment plants, etc.;
• Measurement of exhaust gases such as flare gas, flue gas, exhaust gas, exhaust gas, tail gas, etc.;
• Measurement of non-corrosive gases such as air, oxygen, nitrogen, argon, helium, etc.;
• Metering of natural gas, liquefied petroleum gas, coal bed methane, oil and gas, mine gas, wellhead gas and other gases;
• Metering of chemical gases such as hydrogen, acetylene and ammonia;

Read more about: Liquid Ultrasonic flow meters types & technical guide

Ultrasonic Gas Flow Meter Measuring principle

The ultrasonic flowmeter is realized by measuring the propagation time of ultrasonic waves in the pipeline. The gas flow rate is obtained by the flow velocity, the cross-sectional area of the pipe and the Reynolds number.

Ultrasonic flow meters use the sound wave propagation velocity method to measure the flow rate by calculating the time difference. Assuming: the sound velocity when the fluid is at rest is c, and the fluid velocity is v, then the propagation velocity in the forward flow is c+vcosθ, and the propagation velocity in the reverse flow is c-vcosθ.

Set up two ultrasonic generators (also receivers) T1 and T2 in the fluid, the distance between T1 and T2 is L, the time from T1 to T2 is t1, the time from T2 to T1 is t2, and the diameter is D , The angle between the ultrasonic transmission axis and the central axis is θ, and the time difference between the forward and reverse directions is △t=t2-t1.

L: Ultrasonic sensor distance
C: Speed of sound
V: average flow velocity
θ: Ultrasonic transmission shaft and measuring tube
The angle of the central axis
t1: Ultrasonic propagation time (downstream)
t2: Ultrasonic transmission time (backflow)
Ｑ: Flow
A: Cross-sectional area
K: correction factor

According to the above settings:
Suppose the travel time in the forward direction is t1, and the travel time in the reverse direction is t2.

Take the reciprocal of its propagation time as the difference, namely:

Can eliminate the speed of sound term C:

The “reciprocal difference of propagation time” method with superior repeatability: it is not affected by changes in the speed of sound (temperature), the measurement object is only time, and there is almost no change in year-round use.

Flow rate is related to fluid velocity and cross-sectional area:

Flow rate = velocity * cross-sectional area

After correction by the flow correction coefficient, the flow can be calculated as follows:

Sino-Inst’s Ultrasonic Gas Flow Meter offer reliable and accurate volume flow measurement in a large range of sizes and pressure rating while being fully compliant with international standards.

Sino-Inst is the risk-free choice for your gas flow measurement applications.

Sino-Inst’s Ultrasonic Gas Flow Meter, made in China, Having good Quality, With better price. Our flow measurement instruments are widely used in China, India, Pakistan, US, and other countries.

KimGuo11

Wu Peng, born in 1980, is a highly respected and accomplished male engineer with extensive experience in the field of automation. With over 20 years of industry experience, Wu has made significant contributions to both academia and engineering projects.

Throughout his career, Wu Peng has participated in numerous national and international engineering projects. Some of his most notable projects include the development of an intelligent control system for oil refineries, the design of a cutting-edge distributed control system for petrochemical plants, and the optimization of control algorithms for natural gas pipelines.

drurylandetheatre.com
