What is an insertion flow meter?

Insertion flowmeter is a type of flowmeter in which the measuring probe is inserted into the pipe to measure the flow. This is a type of flow meter divided by structure. It includes various flow meters with different working principles. Insertion flowmeter plays an important role in the measurement of large-diameter water flow. Light weight, low pressure loss, easy installation and maintenance.

There are many types of insertion flowmeters that have been popularized and used. According to the working principle of the insertion flowmeter detection head, it can be divided into insertion turbine, insertion vortex, insertion electromagnetic, uniform velocity tube and thermal flowmeter.

RFQ Flow Meters
Industrial Insertion Flowmeter

Featured Insertion Flowmeters for Sale

Insertion Magnetic Flow Meter

Turbine Insertion Flow Meter

Insertion Vortex Flow Meter

Ultrasonic Insertion Flow Meter

 Annubar Flow Meter
Target Flow Meter
Target Flow Meter

Thermal Mass Flow Meter
Gas Thermal Mass Flow Meter

VERIS Verabar Flow Meter

insertion flowmeter types

Insertion Magnetic Flow Meter, also called insertion electromagnetic flow meter, is an insertion type flow meter. Insertion magnetic flowmeter can be installed without stopping the flow. Suitable for large diameter DN300-3000.

  • Velocity measurement range: (0.1-10) m/s
  • Measuring pipe diameter: DN (100-3000) mm
  • Measurement accuracy: 1.5~2.5 class
  • Working pressure: <1.6MPa
  • Medium temperature: -20~150℃

Extended Reading: Special Magnetic Flowmeter Installation situation

Insertion Vortex Flow Meter is mainly used for flow measurement of gas, liquid, and steam fluid in large-diameter pipelines.

  1. It can measure the volume flow and mass flow of steam, gas and liquid;
  2. No mechanical moving parts, high measurement accuracy, compact structure and easy maintenance;
  3. Small pressure loss, wide range; range up to 1:25;
  4. Adopt interference elimination circuit and anti-vibration sensor head;
  5. The use of disturbance elimination circuit and anti-vibration sensor head makes the instrument have certain anti-vibration performance;
  6. The temperature of the measurable medium can reach +250℃.
  7. The sensor can be disassembled and installed continuously, and the amplifier and the sensor can be separated (separation distance 15m);

The insertion target flowmeter is developed on the basis of the traditional target flowmeter.
It has the characteristics of flowmeter without moving parts such as orifice plate and vortex street. At the same time, it has high sensitivity, accuracy comparable to that of positive displacement flowmeters, and a wide range.

  • Wide range of applicable pipe diameters: Φ10~Φ2000 to larger;
  • Wide temperature range: -196°C ~ 500°C;
  • Applicable to high/low pressure conditions: 0~42MPa;
  • Applicable to various media: gas, liquid (including high viscosity liquid, slurry), steam;
  • It is suitable for medium with low flow velocity, and its measurable minimum flow velocity is 0.08m/s.

The SI-VL Verabar Flow Meter is designed with an aerodynamic engineering structure and is a sensor element. The VERIS Verabar Flow Meter is a Insertion flow meter. A Verabar tube sensor is inserted into the pipe. When the fluid flows through the sensor, a high-pressure distribution zone is created in the forward direction of the flow. And a low-pressure distribution zone is created in the rear. Verabar Flow Meter can be used to measure dry gas, humid gas, liquid or vapor, without being limited by dielectric constant.

The insertion turbine sensor is matched with the display instrument to form an insertion turbine flowmeter. The insertion turbine flowmeter can be widely used in large-diameter pipeline source water, circulating water, purified water, etc. to measure the volume instantaneous flow and total volume of liquids.

Insertion turbine flowmeter features:

  1. The insertion turbine flowmeter has strong resistance to impurities. The tangential impeller can release the suspended debris in the fluid at any time when it rotates. so that it does not wrap around the blades of the tangential impeller;
  2. The structure and principle of the sensor and display instrument are very simple and intuitive, and it is very easy for users to master their use and maintenance technology;
  3. It has high anti-electromagnetic interference and anti-vibration capabilities, small pressure loss, wide flow range, and low lower limit flow rate. The impeller has anti-corrosion function;
  4. The sensor can be installed in the open air, and the entire sensor can be used in water for a long time. Horizontal, vertical and inclined pipes can be used;
  5. Sensor with shut-off valve. There is no need to cut off the current during installation and disassembly;

The Ultrasonic Insertion Flow Meter consists of a converter and a pair of insert sensors. The Insertion sensor consists of a positioning base, a ball valve, and a sensor core. Principle: When ultrasonic waves pass through the liquid, the liquid has a slight influence on the insertion time. The change of the insertion time is proportional to the liquid flow rate.

Annubar Flow Meter is a no-equal solution with a patented, averaging pitot tube that delivers superior measurement accuracy over a wide flow range. This flow meter can measure multiple variables and is engineered with an integrated thermowell for temperature measurement. Its patented T-shaped sensor is capable of obtaining measurements via a single pipe penetration while maintaining a small profile in the pipe to reduce permanent pressure loss and increase energy savings.

Insertion Thermal Mass Flow Meter can simultaneously display flow rate (flow), temperature. Low flow rates are responsive, and high flow rates can achieve good accuracy. Even at high temperature, a good constant temperature difference can be obtained, and the stability is good. There are a variety of installation options to choose from, with a measuring range up to 180Nm/s.

Measured medium: air, natural gas, biogas, coal gas, dry chlorine, oxygen, carbon monoxide combustion air, flue gas, flare gas, hydrogen, argon and other dry gases.

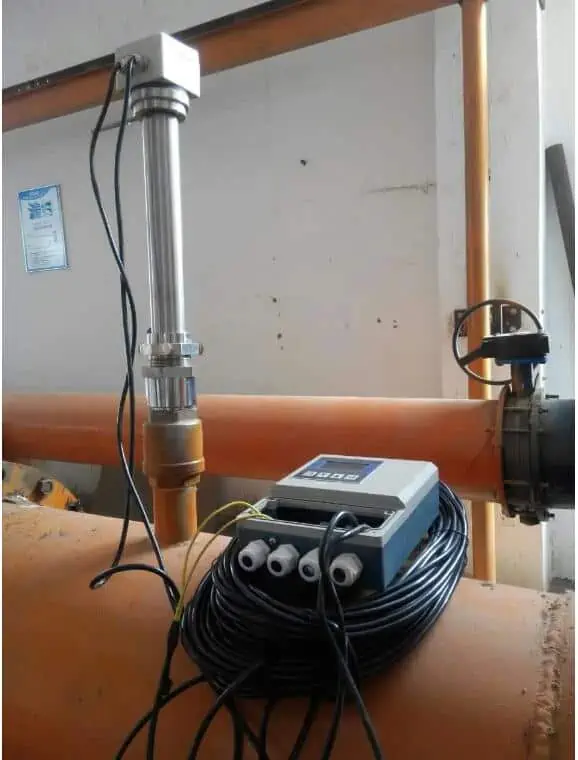

insertion flow meter wastewater

If an insertion flowmeter is to be selected for a wastewater pipeline, an insertion electromagnetic flowmeter must be the first choice.​​

The Insertion wastewater flowmeter can be widely used to measure the flow of conductive fluids in tap water, steel, petroleum, chemical industry, electric power, industry, water conservancy, water administration and water resources. It can also measure corrosive conductive liquids such as acids, alkalis, and salts.

The Insertion sewage flowmeter is mainly composed of a measuring head (or measuring tube), an excitation system, an insertion rod, a junction box, a mounting base, and a sealing and positioning mechanism.

insertion flow meter wastewater

Measuring head (or measuring tube): The measuring head (measuring tube) is located at the particle point of the measured flow velocity in the pipeline, and is used to detect the flow velocity at this point. A measuring head (or measuring tube) is a tip or conduit made of insulating material on which a pair of electrodes is mounted. Except for the electrode tip or the inner wall of the measuring tube, other parts are insulated from the fluid to be measured.

Excitation system: The function of the excitation system is to generate a working magnetic field. It consists of an excitation coil and an iron core. It is insulating sealed into the insertion rod.

Insert rod: Made of stainless steel material. The measuring head and the measuring tube are fixed in the insertion rod. The excitation lead and electrode lead are sealed with the measured medium and connected to the junction box through the insertion rod. A direction indicator is welded on the insertion rod to ensure that the working magnetic field, the flow rate and the electrode connection are perpendicular to each other during installation, which meets the requirements of Faraday’s law of electromagnetic induction.

Junction Box: The junction box is located on the top of the sensor. The terminals in the junction box connect the sensor and the converter to each other.

Mounting base: The mounting base is welded on the pipeline under test, used to connect with the mounting ball valve and insert the part of the sewage flowmeter sensor.

Sealing mechanism: It consists of a compression thread seat made of stainless steel, a compression nut, a rubber washer and a positioning screw. It is used to seal and insert the sewage sensor, so that it can avoid a certain working pressure.

insertion flow meter for air/compressed air

If you choose an insertion flowmeter for an air line, or a compressed air line. Then the insertion thermal mass flow meter can be said to be the first choice.

Because, the insertion thermal mass flow meter has obvious advantages:

  • Wide range ratio 1000:1; large diameter, low flow rate, negligible pressure loss;
  • Direct measurement of mass flow without temperature and pressure compensation;
  • Very sensitive measurement of low flow rates;
  • Easy to design and select, easy to install and use;
  • Suitable for all kinds of single or mixed gas flow measurement.

If you need to measure high temperature air, or high temperature compressed air. Then another type of flow meter may need to be selected. Such as high temperature Annubar flowmeter.

Frequently
Asked
Questions

Help Center

The installation requirements of various insertion flowmeters vary. Here is a brief introduction to the standard installation of plug-in electromagnetic flowmeters:

  1. The arrangement of instruments on the pipeline should be far away from the valve. Maintain a 10-diameter upstream intermediate pipe section and a 5-diameter downstream straight pipe section.
  2. The on-site power supply needs to match the instrument power supply, generally a 24V rectifier. If there is no external power supply for the field measurement, an external power supply meter will be connected.
  3. Pay attention to the flow direction of the measured liquid on the inner wall of the pipe. If the installation is reversed, the measured liquid will show a negative value.
  4. The installation site should be cool and rain-proof. If it is often rained or immersed in water, the protection grade IP68 product should be selected.
  5. The fluid flow in the pipeline should not be stopped if the process requires it. Media should not spill. A ball valve needs to be installed.

Different digital flow sensors include turbine, thermal mass, electromagnetic, ultrasonic, orifice plate, venturi. The different designs of the flowmeters have a variety of applications. With 4-20ma, RS485, or other output.

Then they all work differently. However, they can convert the flow signal into a digital display, or pulse, or 4-20mA signal.

Extended reading: Ultrasonic Flow Meters Types & Technical Guide

For different working principle, We offer different types of flow meters, like:

  • Differential Pressure Flow Meters
  • Orifice Plate
  • Venturi Tube
  • Flow Nozzles
  • The Sonic Nozzle – Critical (Choked) Flow Nozzle
  • Calorimetric Flowmeter
  • Ultrasonic Doppler Flowmeter
  • Positive Displacement Flowmeter
  • Variable Area Flowmeter or Rotameter
  • Velocity Flowmeters
  • Pitot Tubes
  • Electromagnetic Flowmeter
  • Turbine Flowmeter
  • Vortex Flow Meter
  • Thermal Flowmeter
  • Coriolis Flowmeter
  • Mass Flowmeters
  • Open Channel Flowmeters

Sino-Inst is Manufacturer of Insertion Flowmeters. We supply more than 20 kinds of Insertion Flow Meters. 40% insertion magnetic flowmeters, 30% insertion vortex flow meter and other types of flowmeters.

Insertion Flowmeters are mainly used for flow measurement of various liquids and gas.
It can measure even liquids such as water, seawater, oil, and slurry.

Insertion Flowmeters enable stable flow measurement without piping modifications. This greatly meets the measurement needs of many applications. Can be used from small to large tubes.

Sino-Inst’sInsertion Flowmeters, made in China, Having good Quality, With better price. Our flow measurement instruments are widely used in China, India, Pakistan, the US, and other countries.
