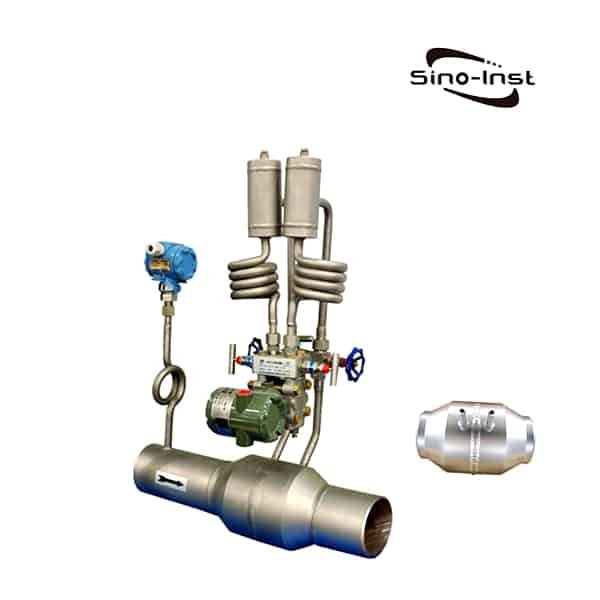

This differential pressure flow transmitter square root extraction 4 to 20 milliamp current output calculator provides a way to determine the flow output reading from the pressure drop measured across an orifice plate and the differential pressure transmitter range. A conversion scale graphic for each differential pressure and SqRt 4-20mA flow output range combination entered is also displayed below the calculated values.
This dp flow transmitter output calculator uses the following formula to calculate the output over a SqRt 4-20mA range:
Linear mA out = 4 + (16 x ((Rdg – Low Limit) / (High Limit – Low Limit)))
Enter the unit used for measuring differential pressure, e.g. mbar, psi, kPa, inH2O etc…
This is the differential pressure measured by the dp flow transmitter that you wish to convert to a square root extraction 4 to 20 milliamp current output reading.
Enter the lowest pressure that the dp flow transmitter will measure. For example zero would be a typical value for most dp flow transmitters, but you can also add negative (-) or positive (+) values as well. Please enter the value in the same pressure units as specified for all other input values.
Enter the maximum differential pressure that the dp flow transmitter will measure.
SqRt Output (mA)
This is the expected ideal dp flow transmitter current output signal in milliamps for the pressure drop specified.
