Pressure Unit Converter
User Guide
This converter and dynamic conversion scale will calculate the equivalent pressure value from one pressure measurement unit to another and generate a conversion table based on the selected units.
- Enter the value you want to convert in the upper input box.
- Select the corresponding units from the upper pull down options.
- Select the units to convert to, from the lower pull down options.
- The conversion will show in the lower text box.
You can use this converter to copy and paste values as well, after pasting a value, just click/touch one of the text boxes or select a unit to convert the value.
Pressure unit
The pressure unit, in physics, refers to the force acting vertically on the surface of an object. The unit is Pascal (abbreviated as Pa and the letter is "Pa"). (Strictly speaking, the pressure unit should be Newton N. The pressure unit is Pascal, and it is customary to call pressure as pressure in life).In China, we generally describe the pressure of gas in kilograms (instead of kilograms). The unit is "kg·f/cm2". One kilogram of pressure means one kilogram of force acts on one square centimeter.
Pressure unit system:
English (IP) psi ,psf ,in.Hg ,inH2OMetric (metric) Kg/㎡, Kg/ c㎡ ,mH2O
ISO metric (ISO metric) Pa, bar ,N
Explanation of pressure units
The unit of pressure 1 Pascal (Pa N/m2) is equal to 1 Newton per square meter.1 bar is equal to 100,000 Pa, which is slightly less than the average atmospheric pressure at sea level on the earth.
1 kilogram per square centimeter (kg/cm2) is a pressure measurement, equal to 1 kilogram force per square centimeter, also known as industrial atmospheric pressure.
1 inch of mercury (in Hg @ 0°C) at 0 degrees Celsius is defined as the pressure produced by a 1 inch of mercury at 0°C and standard acceleration of gravity.
1 pound per square inch (psi) is the pressure produced by applying a force of 1 pound to an area of 1 square inch.
One pound per square foot (psf) is the pressure that a pound of force is applied to a square foot area.
1 mm of water column at 4 degrees Celsius (mm H2O @ 4°C) is defined as the pressure produced by a 1 mm height of water column at 4°C and standard acceleration of gravity.
1 inch of water column (in H2O @ 4°C) at 4 degrees Celsius is defined as the pressure produced by a 1 inch of water column at 4°C and standard acceleration of gravity.
Atmospheric pressure, also known as atmospheric pressure, is the pressure in the earth's atmosphere.
Pressure unit conversion method:
1.1atm=0.1MPa=100KPa=1kg=1bar=10m water column=14.5PSI
2.1KPa=0.01kg=0.01bar=10mbar=7.5mmHg=0.3inHg=7.5torr=100mmH2O=4inH2O
3. 1MPa=1N/mm2
14.5psi=0.1Mpa
1bar=0.1Mpa
30psi=0.21mpa, 7bar=0.7mpa

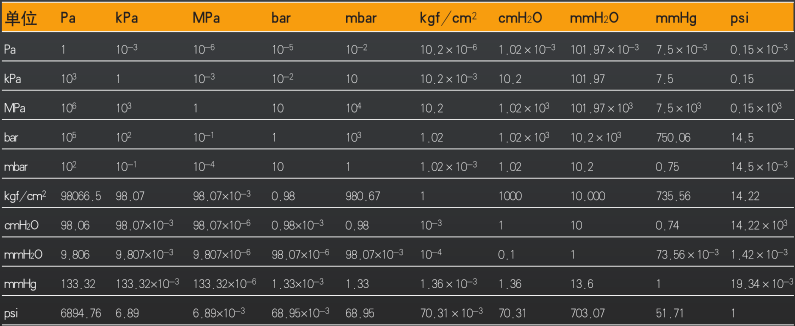

Pressure unit conversion table
