Looking for the best flow meters for your PVC pipes system? Well, you’re in the right place! Flow meters are essential tools for measuring the flow rate of fluids through pipes, and choosing the right one can make all the difference in the efficiency and accuracy of your system.

In this article, we will cover everything you need to know about flow meters for PVC pipes, including the different types available, factors to consider when choosing one, installation and maintenance tips, cost considerations, and more. So, sit tight and get ready to find your ideal match!

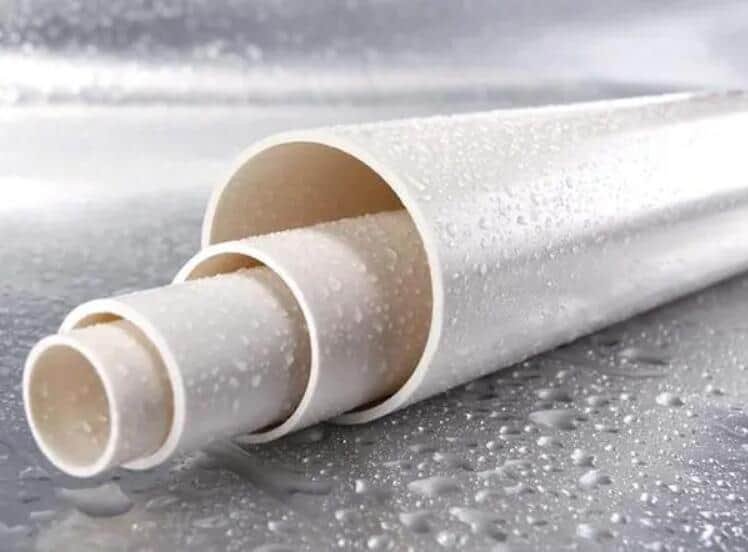

Get to know your PVC pipes

PVC pipes are a type of plastic pipe that are commonly used for plumbing, irrigation, and other applications where a lightweight and durable pipe is needed. They are made from a type of plastic called polyvinyl chloride (PVC), which is known for its strength, resistance to corrosion, and flexibility.

Properties:

  • Lightweight
  • Strong and durable
  • Flexible
  • Resistant to corrosion
  • Highly resistant to chemicals, UV light, and extreme temperatures

Benefits:

  • Affordable
  • Easy to transport and install
  • Versatile and suitable for a wide range of applications
  • Can be easily cut, shaped, and joined together
  • Low maintenance requirements
  • Long lifespan

Industries that commonly use PVC pipes:

  • Agriculture
  • Construction
  • Manufacturing
  • Residential and commercial plumbing
  • Drainage and sewage systems

Flow Meters: What Are They?

A flow meter is a device that measures the amount of liquid, steam or gas that passes through a specific point in a pipe or conduit. It is used in various industries to monitor and control the flow of fluids in pipelines, such as water, oil , gas, or chemicals.

Flow meters can be mechanical, electronic, or ultrasonic, and they work by measuring the velocity, volume, or mass of the fluid.

Flow meters are essential for ensuring that fluid flow rates remain within acceptable limits. And they help prevent damage to equipment and systems due to overloading or underloading. They are also critical in maintaining product quality and process efficiency.

Read more about: Types Of Pipe Flow Meters

There are several different types of flow meters available, each with their own unique features and benefits. Here are some of the most common types of flow meters:

  • Magnetic flow meters:
    • Work by generating a magnetic field across the pipe
    • Measure the voltage created by fluid moving through the magnetic field
    • Can be used with a wide range of fluids
    • Are non-intrusive, meaning they don’t require direct contact with the fluid
  • Ultrasonic flow meters:
    • Use sound waves to measure flow
    • Are non-intrusive and don’t require direct contact with the fluid
    • Can be installed without disrupting the flow of the fluid
  • Turbine flow meters:
    • Measure flow by using a rotor with blades that spin as the fluid moves through the pipe
    • Can be used with liquids and gases
  • Positive displacement flow meters:
    • Measure flow by dividing the fluid into small, measured increments
    • Can be used with a wide range of fluids
  • Vortex flow meters:
    • Measure flow by detecting the frequency of vortices created by the fluid moving through the pipe
    • Can be used with liquids, gases, and steam
  • Mass flowmeter:
    • high measurement accuracy

Top Flow Meters for PVC Pipes

Top Flow Meters for PVC Pipes

Ultrasonic flow meters for PVC pipes

If I were to vote, I would definitely choose ultrasonic flowmeters as the preferred flowmeter for PVC pipes. Especially for measuring the pipeline flow of water.

Because they measure non-contact, installation is simple.

Read more about: Transit time Ultrasonic Flow Meter Working Principle

Ultrasonic flow meters can be a great choice for measuring flow in PVC pipes. Here are some reasons why:

  • Non-invasive: Ultrasonic flow meters don’t require direct contact with the fluid, meaning they won’t disrupt the flow or contaminate the fluid being measured.
  • Accurate: Ultrasonic flow meters are highly accurate, providing precise flow measurements even in low-flow conditions.
  • Versatile: Ultrasonic flow meters can be used to measure a wide range of fluids, including water, oils, and chemicals.
  • Low maintenance: Ultrasonic flow meters require minimal maintenance, making them a cost-effective choice in the long run.
  • Easy to install: Ultrasonic flow meters can be installed without disrupting the flow of the fluid, meaning they can be installed without shutting down the system.
  • Can measure bidirectional flow: Ultrasonic flow meters can measure flow in both directions, which can be useful in certain applications.

Overall, ultrasonic flow meters can be an excellent choice for measuring flow in PVC pipes. They provide accurate and reliable measurements while being easy to install and maintain. Be sure to consult with a professional to determine whether an ultrasonic flow meter is the right choice for your particular application.

Strap on ultrasonic flow meter X3 for PVC pipes

Read more about: Shop 101: Key Factors In Selecting A Pipe Flow Meter

Magnetic flow meters for PVC pipes

Except for ultrasonic flowmeters. Electromagnetic flow meters are also a common choice for PVC pipe measurements.

Magnetic flow meters can be an excellent choice for measuring flow in PVC pipes. Here are some reasons why:

  • Suitable for corrosive fluids: Magnetic flow meters can be used to measure a wide range of fluids, including corrosive chemicals that can damage other types of flow meters.
  • Accurate: Magnetic flow meters provide accurate and reliable flow measurements, even in low-flow conditions.
  • Easy to install: Magnetic flow meters are easy to install and can be integrated into existing PVC pipe systems without disrupting the flow of the fluid.
  • Low maintenance: Magnetic flow meters require minimal maintenance, making them a cost-effective choice in the long run.
  • Wide range of pipe sizes: Magnetic flow meters can be used with a wide range of pipe sizes, making them suitable for a variety of applications.

Overall, magnetic flow meters can be an excellent choice for measuring flow in PVC pipes, particularly when working with corrosive fluids. They provide accurate and reliable measurements while being easy to install and maintain. Be sure to consult with a professional to determine whether a magnetic flow meter is the right choice for your particular application.

Gear flow meters for PVC pipes

Gear Flow Meter is our new product. It has excellent performance in the field of measuring small flow. At the same time, Gear Flow Meter is available in aluminum alloy, stainless steel and PTFE. It can meet the measurement of corrosive liquid and high viscosity liquid.

Read more about Specifications of Gear Flow Meter.

Frequently
Asked
Questions

You can determine if water is flowing through a PVC pipe by checking the water meter or installing a flow meter on the pipe. Alternatively, you can physically inspect the pipe and look for signs of water movement, such as a swirling or bubbling motion.

The maximum flow rate for a 2 inch PVC pipe depends on several factors, including the pressure of the fluid and the length of the pipe. However, as a general rule of thumb, a 2 inch PVC pipe can typically handle a flow rate of up to 100 gallons per minute.

A water meter is a type of flow meter that is specifically designed to measure the volume of water that passes through a pipe. A flow meter, on the other hand, can be used to measure the flow rate of any type of fluid, including water.

Flow rate can be monitored on a pipe by installing a flow meter, which measures the amount of fluid passing through the pipe over a given period of time. The flow meter can then display this information on a gauge or send it to a monitoring system.

Read more about: Flow Meters With GPM Units

There is no one-size-fits-all rule of thumb for flow meter pipe. The size and type of flow meter required will depend on a variety of factors, including the size of the pipe, the type of fluid being measured, and the flow rate of the fluid. It is important to consult with a professional to determine which type of flow meter is best suited for your particular application.

More Water Pipes Flow Measurement Solutions

BTU Meter for Chilled Water

What is BTU Meter for Chilled Water? The BTU Meter for Chilled Water accurately measures the thermal energy consumed by…

Chilled Water Flow Meter

Application What is a Chilled Water Flow Meter? A chilled water flow meter refers to a flow meter that can…

3 inch (3″) Water Meter

Low cost 3″ Water Meter 3″ water meter is also DN80 water meter. Easy to read. Totalizing water volume. Intelligent…

In conclusion, choosing the right flow meter for your PVC pipe system is crucial to ensuring efficient and accurate measurement of fluid flow. Factors such as pipe size, flow rate, fluid properties, and cost should be carefully considered when selecting a flow meter. There are several types of flow meters available, each with their own unique benefits and applications. Magnetic and ultrasonic flow meters are particularly well-suited for measuring flow in PVC pipes, due to their non-invasive nature and ability to accurately measure a wide range of fluids.

At Sino-Inst, we are a professional flow meter supplier with years of experience in providing high-quality flow measurement solutions to clients across a wide range of industries. Our knowledgeable team can help you choose the right flow meter for your PVC pipe system, and we offer a wide range of products to suit any need or budget. Contact us today to learn more about our flow meters and how we can help you find the perfect match for your PVC pipe system.
